SKF

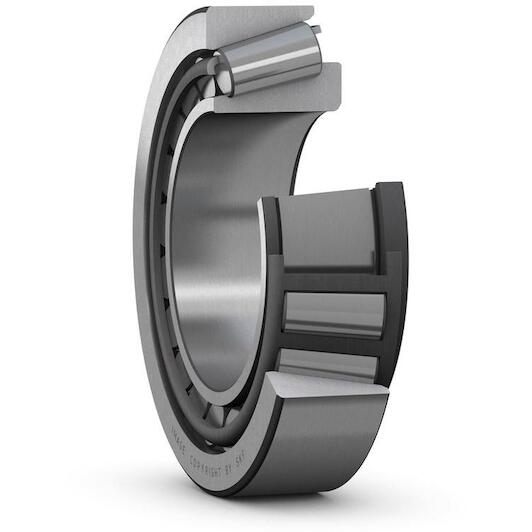

SKF M 86649/2/610/2/QVQ506 single-row tapered roller bearing 30.2 x 64.3 x 21.4 mm with contact angle 20°

Recommended Retail Price €81.90
40.40 tax incl.
€33.39 excl. VAT (incl. all environmental contributions)
On order: delivered from 28/05/2026
each

  • Delivery by DHL

Product description

  • Single row tapered roller bearings, inch sizes, are designed to accommodate combined radial and axial loads and provide low friction during operation. The inner ring, with rollers and cage, can be mounted separately from the outer ring. These separable and interchangeable components facilitate mounting, dismounting and maintenance. By mounting one single row tapered roller bearing against another and applying a preload, a rigid bearing application can be achieved.

Avantages

  • High radial and axial load carrying capacity
  • Accommodate axial loads in one direction
  • Low friction and long service life
  • Separable and interchangeable components
Key features according to our expert
  • Inner diameter: 30,162 mm
  • Outer diameter: 64,292 mm
  • Width: 21,95 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316571180410
  • Supplier number: SKF M 86649/2/610/2/QVQ506
Inner diameter
30,162 mm
Outer diameter
64,292 mm
Width
21,95 mm
Cage
Sheet metal
Width, outer ring
16.67 mm
Lubricant
None
Relubrication feature
Without
Matched arrangement
No
Basic static load rating
61.00000003124 kN
Bearing part
Complete bearing
Locating feature, bearing outer ring
None
Sealing
Without
Arrangement of contact angle (double-row bearing)
Not applicable
Width, inner ring
21.433 mm
Width, total
21.433 mm
Contact angle
20 °
Bore diameter
30.162 mm
Basic dynamic load rating
49.50000002535 kN
Coating
Without
Outside diameter
64.292 mm
Bore type
Cylindrical
