SKF

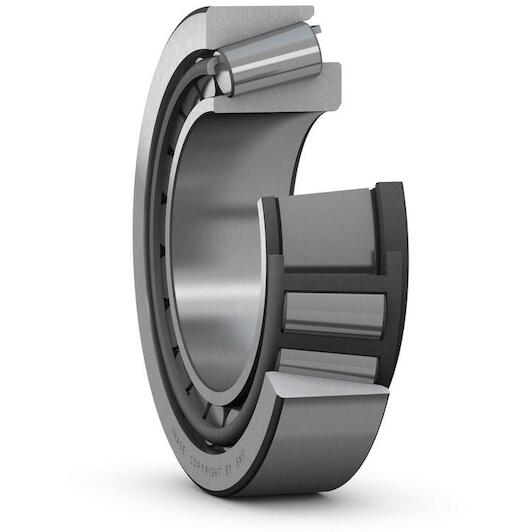

SKF M 12649/610/Q single-row tapered roller bearing 21.4 x 50 x 18.3 mm with contact angle 10.5° - M 12649/610

Recommended Retail Price €65.82
32.40 tax incl.
€26.78 excl. VAT (incl. all environmental contributions)
On order: delivered from 29/05/2026
each

  • Delivery by DHL

Product description

Single row tapered roller bearings are designed to accommodate combined radial and axial loads and provide low friction during operation. The inner ring, with rollers and cage, can be mounted separately from the outer ring. These separable and interchangeable components facilitate mounting, dismounting and maintenance. By mounting one single row tapered roller bearing against another and applying a preload, a rigid bearing application can be achieved.

  • High radial and axial load carrying capacity
  • Accommodate axial loads in one direction
  • Low friction and long service life
  • Separable and interchangeable components
Key features according to our expert
  • Inner diameter: 21,43 mm
  • Number of rows: 1
  • Outer diameter: 50,005 mm
  • Width: 17,526 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316570710519
  • Supplier number: SKF M 12649/610
Inner diameter
21,43 mm
Number of rows
1
Outer diameter
50,005 mm
Width
17,526 mm
Bore type
Cylindrical
Cage
Sheet metal
Width, outer ring
13.97
Lubricant
None
Arrangement of contact angle (double-row bearing)
Not applicable
Reference speed
12000
Relubrication feature
Without
Matched arrangement
No
Basic static load rating
38
Bearing part
Complete bearing
Locating feature, bearing outer ring
None
Sealing
Without
Skf performance class
SKF Explorer
Width, inner ring
18.288
Width, total
18.288
Contact angle
10.5
Limiting speed
15000
Bore diameter
21.43
Basic dynamic load rating
45.4
Coating
Without
Outside diameter
50.005
Unit system
Inch
