SKF

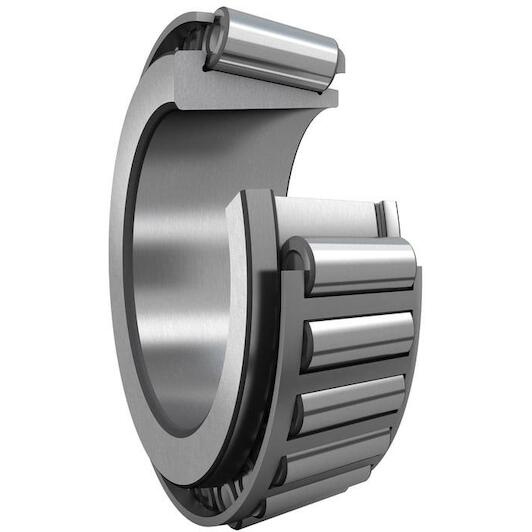

SKF LM 501349/Q single-row tapered roller bearing cylindrical 41.3 x 19.8 mm

Recommended Retail Price €53.42
26.40 tax incl.
€21.82 excl. VAT (incl. all environmental contributions)
On order: delivered from 01/06/2026
each

  • Delivery by DHL

Product description

Tapered roller bearing cones (inner ring with rollers and cage) are intended to be combined with cups (outer ring) from the same series. Together they create a complete bearing that accommodates combined radial and axial loads and provides low friction during operation. By mounting one single row tapered roller bearing against another and applying a preload, a rigid bearing application can be achieved.

  • Can be combined with cups from the same series
  • High radial and axial load carrying capacity
  • Accommodate axial loads in one direction
  • Low friction and long service life
Key features according to our expert
  • Inner diameter: 41,275 mm
  • Width: 19,812 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316570270310
  • Supplier number: SKF LM 501349/Q
Inner diameter
41,275 mm
Width
19,812 mm
Bore type
Cylindrical
Cage
Sheet metal
Lubricant
None
Relubrication feature
Without
Matched arrangement
No
Basic static load rating
68
Bearing part
Inner ring, cage and roller assembly (cone assembly)
Sealing
Without
Arrangement of contact angle (double-row bearing)
Not applicable
Width, total
19.812
Width, inner ring
19.812
Bore diameter
41.275
Basic dynamic load rating
55
Coating
Without
Unit system
Inch
