skf_lm29749711q
SKF

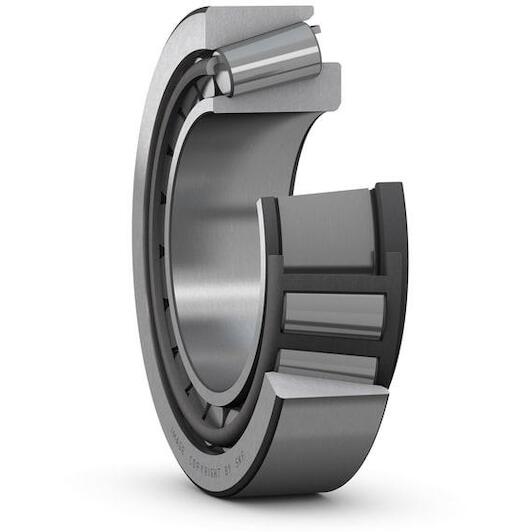

SKF LM 29749/711/Q single-row tapered roller bearing 38.1 mm

Recommended Retail Price €125.54
61.95 tax incl.
€51.20 excl. VAT (incl. all environmental contributions)
On order: delivered from 28/05/2026
each

  • Delivery by DHL

Product description

Single row tapered roller bearings are designed to accommodate combined radial and axial loads and provide low friction during operation. The inner ring, with rollers and cage, can be mounted separately from the outer ring. These separable and interchangeable components facilitate mounting, dismounting and maintenance. By mounting one single row tapered roller bearing against another and applying a preload, a rigid bearing application can be achieved.

  • High radial and axial load carrying capacity
  • Accommodate axial loads in one direction
  • Low friction and long service life
  • Separable and interchangeable components
Key features according to our expert
  • Inner diameter: 38,1 mm
  • Width: 19,812 mm
  • Number of rows: 1
  • Outer diameter: 65,088 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316577744838
  • Supplier number: SKF LM 29749/711/Q
Inner diameter
38,1 mm
Width
19,812 mm
Number of rows
1
Outer diameter
65,088 mm
Arrangement of contact angle (double-row bearing)
Not applicable
Bore type
Cylindrical
Cage
Sheet metal
Width, outer ring
15.748
Lubricant
None
Reference speed
7500
Relubrication feature
Without
Matched arrangement
No
Basic static load rating
57
Bearing part
Complete bearing
Locating feature, bearing outer ring
None
Sealing
Without
Contact angle
12.5
Width, total
19.812
Width, inner ring
18.288
Limiting speed
11000
Bore diameter
38.1
Basic dynamic load rating
42.9
Coating
Without
Outside diameter
65.088
Unit system
Inch
