SKF

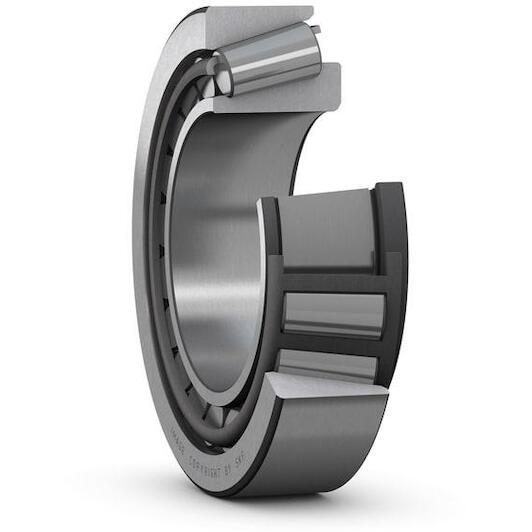

SKF LM 102949/910/Q single-row tapered roller bearing 45.242 mm

Recommended Retail Price €85.97
42.40 tax incl.
€35.04 excl. VAT (incl. all environmental contributions)
On order: delivered from 26/05/2026
each

  • Delivery by DHL

Product description

Single row tapered roller bearings are designed to accommodate combined radial and axial loads and provide low friction during operation. The inner ring, with rollers and cage, can be mounted separately from the outer ring. These separable and interchangeable components facilitate mounting, dismounting and maintenance. By mounting one single row tapered roller bearing against another and applying a preload, a rigid bearing application can be achieved.

  • High radial and axial load carrying capacity
  • Accommodate axial loads in one direction
  • Low friction and long service life
  • Separable and interchangeable components
Key features according to our expert
  • Inner diameter: 45,242 mm
  • Width: 19,812 mm
  • Outer diameter: 73,431 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316571229829
  • Supplier number: SKF LM 102949/910/Q
Inner diameter
45,242 mm
Width
19,812 mm
Outer diameter
73,431 mm
Arrangement of contact angle (double-row bearing)
Not applicable
Bore type
Cylindrical
Cage
Sheet metal
Width, outer ring
15.748
Lubricant
None
Reference speed
6700
Relubrication feature
Without
Matched arrangement
No
Basic static load rating
75
Bearing part
Complete bearing
Locating feature, bearing outer ring
None
Sealing
Without
Width, inner ring
19.812
Width, total
19.812
Contact angle
11.5
Limiting speed
9500
Bore diameter
45.242
Basic dynamic load rating
53.9
Coating
Without
Outside diameter
73.431
Unit system
Inch
