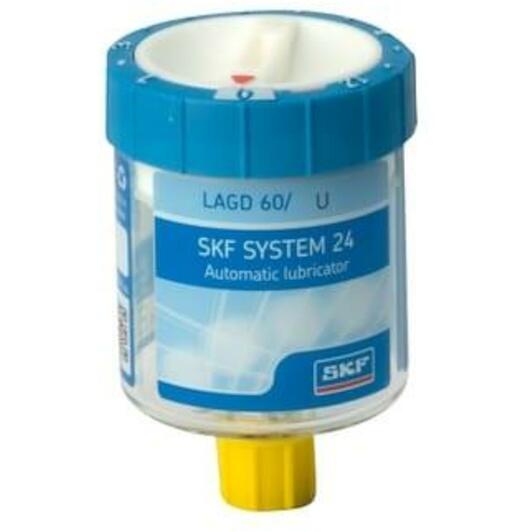

SKF LAGD 60/U gas-powered automatic single-point lubrication system for 60 ml cartridges (empty)

Supplier number: SKF LAGD 60/U | EAN 7316571413488

Recommended Retail Price €35.03

32.60 tax incl.

€26.94 excl. VAT (incl. all environmental contributions)

On order: delivered from 23/10/2026

The minimum purchase order quantity for the product is 10.

Delivery by DHL

✆ Talk to a specialist

Product information

€32.60

tax incl.

Key features according to our expert

Capacity: 60 ml
Connection size: 1/4"
Connection type: External thread
Thread type: BSPT
Max. working pressure: 5 bar
Weight: 0,07 kg

Product description

The SKF SYSTEM 24 LAGD 60/U is provided empty and recommended for oil filling. Our gas driven single point automatic lubricators are available in many configurations, pre-filled with SKF lubricants or empty, suitable for filling with oil. With tool-free activation and time-setting they allow easy, safe and accurate relubrication.

Flexible dispense rate from 1 to 12 months
ATEX zone 0 approved
Transparent lubricant container allows visual inspection of dispense rate
Compact size, suitable for restrictive areas
Improved reliability and optimized maintenance

All Features

Capacity: 60 ml
Connection size: 1/4"
Connection type: External thread
Thread type: BSPT
Max. working pressure: 5 bar
Weight: 0,07 kg
Intrinsically safe approval: II 1G Ex ia IIC T6 Ga, II 1D Ex ia IIIC T200 85°C Da, I M1 Ex ia I Ma
Maximum pressure: 5
Nominal emptying time: 1-12
Recommended storage temperature: 20 °C
Recommended applications: Empty lubricator for oil filling
Ambient temperature range: -20-60
Special features: Non-return valve included
Connecting thread: R 1/4
Drive mechanism: Gas cell producing inert gas
Power source: Gas cell
Lubricator capacity: 60
Degree of protection (ip): IP 68
Shelf life: 2
Maximum feed line length: 1.5
