What are the main dimensions of this cam follower?

The cam follower has an outside diameter of 80 mm, a stud diameter of 30 mm (M30x1.5 thread), and an overall length of 100 mm.

What is the outer ring profile?

The outer ring has a crowned profile, which helps reduce edge stresses caused by slight misalignments.

Does this cam follower feature an eccentric collar?

No, this is a concentric model without an eccentric bushing.

Is the cam follower sealed and relubricable?

Yes, it features integrated seals on both sides and lubrication holes for relubrication.

How do you mount the KR 80 PPA?

You insert the threaded stud (M30x1.5) into the mounting hole and secure it using a matching nut.

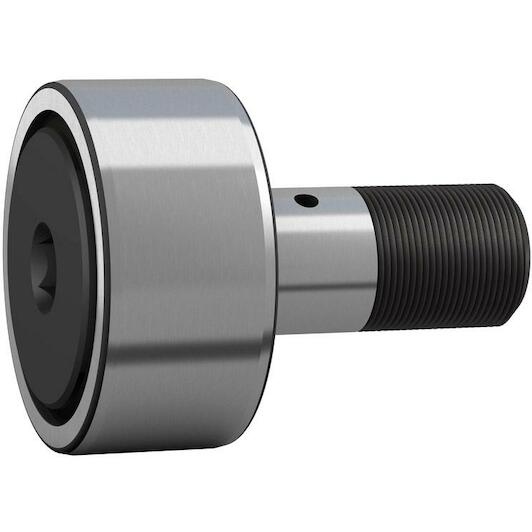

SKF KR 80 PPA cam roller with integrated seal and relubrication 80 mm - KR 80 PP

Supplier number: SKF KR 80 PP | EAN 7316570495812

Recommended Retail Price €505.68

249.60 tax incl.

€206.28 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 5 products in stock.

Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Smooth tracking with Skf follower

Practical benefits

Optimized load and stress distribution: The crowned outer ring profile helps you accommodate angular misalignments while reducing edge stresses on your mating track.
Effective protection against contaminants: An integrated contact seal prevents dust and moisture ingress, ensuring you maintain smooth operation and minimal internal wear.
Fast and convenient relubrication: You can easily add fresh grease through the threaded stud lubrication ports to maximize component service life.

In a nutshell

The right choise for

Achieve smooth tracking and dependable linear guidance with the Skf kr 80 ppa cam follower. Featuring a crowned outer ring profile, this track roller accommodates minor angular misalignments and significantly reduces edge stresses on your mating track. Integrated contact seals keep dust and moisture out of the bearing, ensuring smooth running and minimal internal wear in tough industrial environments. With an 80 mm outer diameter, 100 mm overall width, and a 30 mm M30x1.5 threaded stud, it mounts securely into your setup. Integrated relubrication ports make routine grease maintenance quick and convenient, helping you maximize the service life of your machinery.

Product information FAQ

€249.60

In stock - tax incl.

Key features according to our expert

Outer diameter: 80 mm
Stud diameter: 30 mm
With eccentric collar: NO
Number of rows: 1
Outer ring profile: Spherical
Width: 100 mm

Product description

Cam followers (stud-type track rollers) are designed to run on all types of tracks and to be used in cam drives, conveyor systems, etc. They are based on a needle roller bearing with a threaded solid stud instead of an inner ring. They have a thick-walled outer ring with a crowned running surface and are supplied sealed and ready-to-mount. The bearings can be relubricated via the stud.

High radial load carrying capacity
Accommodate axial loads due to skew or tilting
Long service life
Easy to mount
Sealed for increased reliability, with relubrication feature

Documents

⤓ Technical data sheet PDF

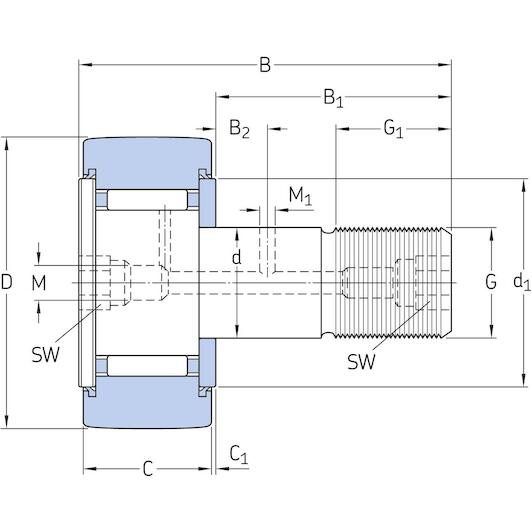

All Features

Outer diameter: 80 mm
Stud diameter: 30 mm
With eccentric collar: NO
Number of rows: 1
Outer ring profile: Spherical
Width: 100 mm
Width, outer ring: 35
Basic static load rating: 71
Relubrication feature: Centre of each stud end and radial hole in stud shank
Lubricant: Grease
Feature for tightening: Hexagonal recess
Sealing type: Contact
Cage: With
Tolerance class: Other
Material, bearing: Bearing steel
Functional outside diameter: 80
Rolling elements: Needle rollers
Radial internal clearance: Between C2 and CN
Limiting speed: 1800
Sealing: Seal on both sides
Number of flanges, outer ring: 2
Basic dynamic load rating: 35.8
Coating: Without
Length: 100
Stud alignment: Centric

Brand SKF
01210049
EAN 7316570495812
Supplier number SKF KR 80 PP

Frequently asked questions about this product

Answered by specialists

What are the main dimensions of this cam follower?: The cam follower has an outside diameter of 80 mm, a stud diameter of 30 mm (M30x1.5 thread), and an overall length of 100 mm.
What is the outer ring profile?: The outer ring has a crowned profile, which helps reduce edge stresses caused by slight misalignments.
Does this cam follower feature an eccentric collar?: No, this is a concentric model without an eccentric bushing.
Is the cam follower sealed and relubricable?: Yes, it features integrated seals on both sides and lubrication holes for relubrication.
How do you mount the KR 80 PPA?: You insert the threaded stud (M30x1.5) into the mounting hole and secure it using a matching nut.
