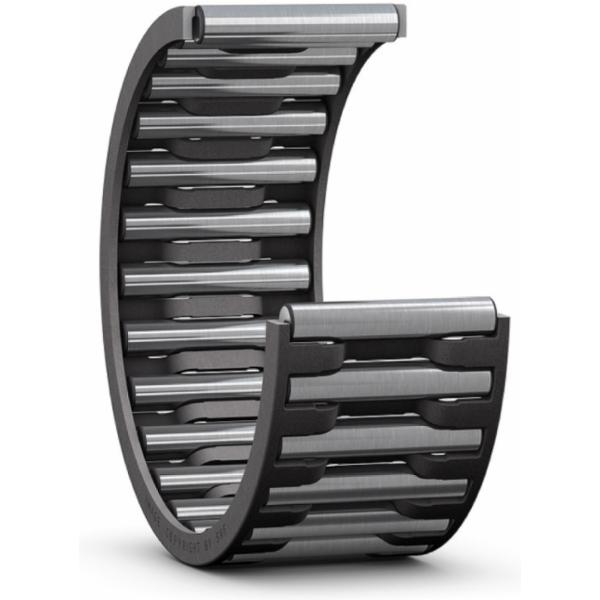

SKF K 40X45X13 single-row needle roller bearing 40 x 45 x 13 mm

Show more features

Inner diameter

40 mm

Width

13 mm

Seal (bearing)

Without seal

Material (bearing seal)

Not applicable

Material (cage)

Sheet steel

Outer diameter

45 mm

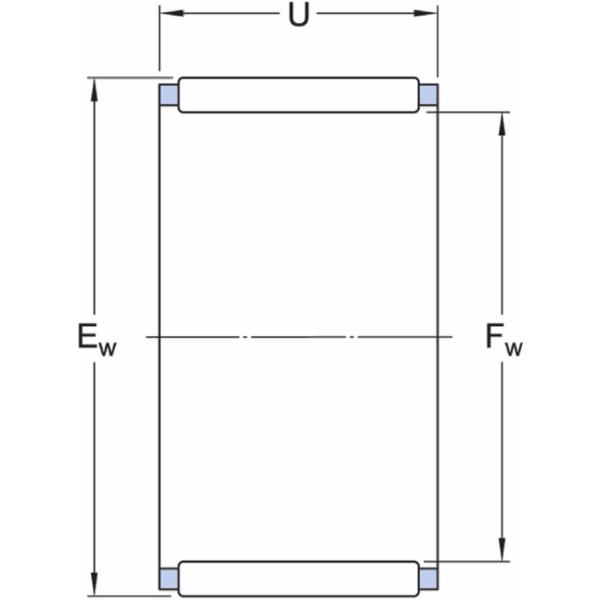

Bore diameter of needle roller complement

40 mm

Tolerance class

Normal

Aligning feature

Without

Basic static load rating

32.5 kN

Lubricant

None

Relubrication feature

Without

Reference speed

10,000 r/min

Sealing

Without

Seal type

Not applicable

Cage

Sheet steel

Bearing part

Needle roller and cage assembly

Limiting speed

12,000 r/min

Outside diameter of needle roller complement

45 mm

Outer ring type

Not applicable

Number of rows

1

Basic dynamic load rating

16.8 kN

Coating

Without

Outside diameter

45 mm

Material, bearing

Bearing steel
