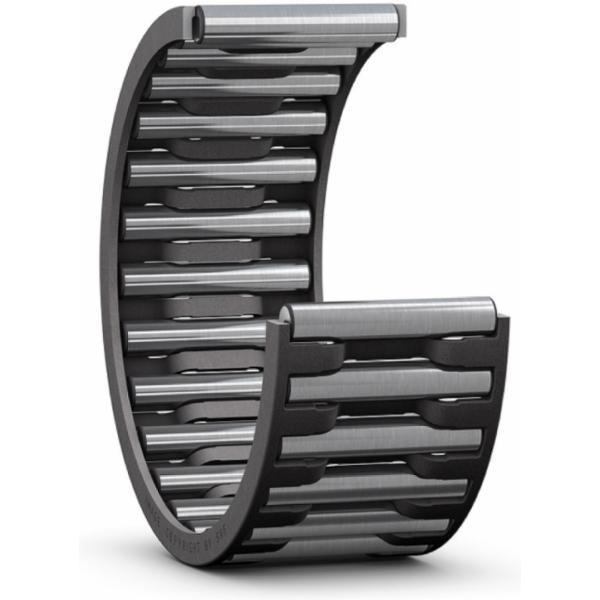

SKF K 14X20X12 single-row needle roller bearing 14 x 20 x 12 mm

SKF
Supplier number: SKF K 14X20X12 | EAN 7316570808087
This product has been discontinued.

✆ Talk to a specialist


Product information

Product information

Key features according to our expert

  • Inner diameter: 14 mm
  • Width: 12 mm
  • Outer diameter: 20 mm

All Features

Inner diameter
14 mm
Width
12 mm
Outer diameter
20 mm
Sealing
Without
Cage
Sheet steel
Seal type
Not applicable
Lubricant
None
Reference speed
24,000 r/min
Relubrication feature
Without
Bore diameter of needle roller complement
14 mm
Basic static load rating
10.6 kN
Aligning feature
Without
Tolerance class
Normal
Bearing part
Needle roller and cage assembly
Outer ring type
Not applicable
Outside diameter of needle roller complement
20 mm
Limiting speed
28,000 r/min
Number of rows
1
Basic dynamic load rating
9.9 kN
Coating
Without
Outer diameter
20 mm
Material, bearing
Bearing steel
  • Brand SKF
  • EAN 7316570808087
  • Supplier number SKF K 14X20X12
