SKF

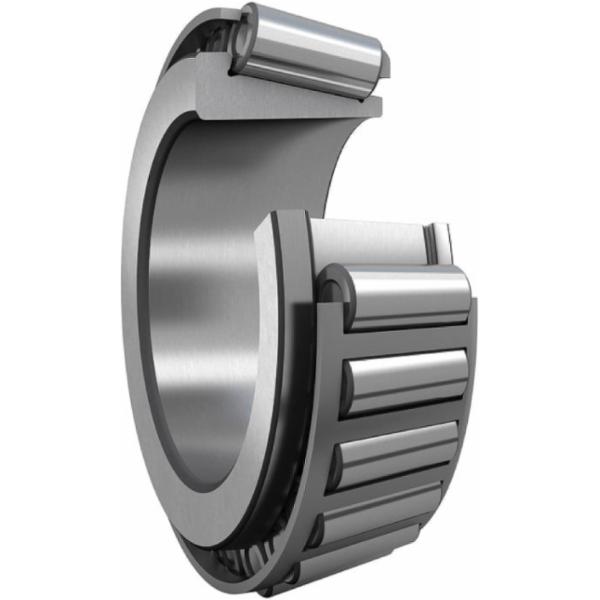

SKF HM 801346 X/CL7A single-row tapered roller bearing cylindrical 38.1 x 28.57 mm

This article is not available

Product description:

  • A cone (the inner ring and outer ring with the cage and roller set) can be combined with any cup (the outer ring) of this bearing series
Key features according to our expert
  • Inner diameter: 38,1 mm
  • Width: 28,575 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316579337274
  • Supplier number: SKF HM 801346 X/CL7A
Inner diameter
38,1 mm
Width
28,575 mm
Cage
Sheet metal
Lubricant
None
Relubrication feature
Without
Matched arrangement
No
Basic static load rating
118 kN
Bearing part
Inner ring, cage and roller assembly (cone assembly)
Sealing
Without
Arrangement of contact angle (double-row bearing)
Not applicable
Width, total
28.575 mm
Width, inner ring
28.575 mm
Bore diameter
38.1 mm
Basic dynamic load rating
106 kN
Coating
Without
Bore type
Cylindrical
