Product description:
- A cone (the inner ring and outer ring with the cage and roller set) can be combined with any cup (the outer ring) of this bearing series

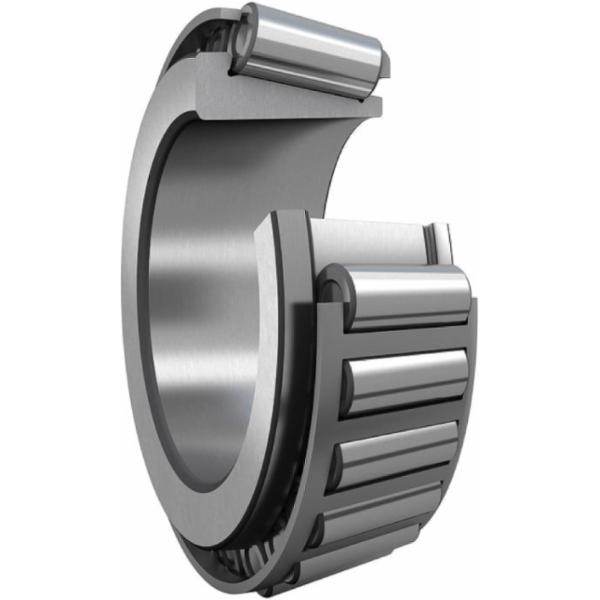

SKF HM 218248/W/2A tapered roller bearing
Key features according to our expert
- Inner diameter: 90 mm
- Width: 40 mm
Specifications / All features
- Brand: SKF
- EAN: 7316570003352
- Supplier number: SKF HM 218248/W/2A
- Inner diameter
- 90 mm
- Width
- 40 mm
- Cage
- Sheet metal
- Lubricant
- None
- Relubrication feature
- Without
- Matched arrangement
- No
- Basic static load rating
- 355 kN
- Bearing part
- Inner ring, cage and roller assembly (cone assembly)
- Sealing
- Without
- Arrangement of contact angle (double-row bearing)
- Not applicable
- Width, total
- 40 mm
- Width, inner ring
- 40 mm
- Bore diameter
- 90 mm
- Basic dynamic load rating
- 280 kN
- Coating
- Without
- Bore type
- Cylindrical
