SKF G 12X19X3 radial shaft seal 12 mm x 19 mm x 3 mm

Supplier number: SKF G 12X19X3 | EAN 7316570082234

4.91 tax incl.

€4.06 excl. VAT (incl. all environmental contributions)

On stock - immediately available

Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Reliable sealing for needle bearings

Practical benefits

Low cross sectional height: With a 3 mm width, you can easily install this seal in compact bearing assemblies.
Effective lubricant retention: The NBR single lip retains lubricants efficiently while preventing external contaminants from entering the mechanism.
Safe and damage-free fitting: Thanks to the steel-reinforced rubber body, you protect both the seal and housing during installation and removal.

In a nutshell

The right choise for

With the Skf g 12X19X3 radial shaft seal, you reliably protect compact needle roller bearing arrangements against lubricant leakage and external contamination. Thanks to its low cross-sectional width of 3 mm, an inside diameter of 12 mm, and an outside diameter of 19 mm, this seal fits easily into tight bearing housings. The flexible nbr sealing lip effectively retains grease and oil while blocking dust and dirt from entering the mechanism. In addition, the sheet steel reinforcement combined with the rubber outside diameter ensures a secure fit in the housing bore without damage during installation, operating smoothly from -30 °C to 110 °C.

Product information FAQ

€4.91

In stock - tax incl.

Key features according to our expert

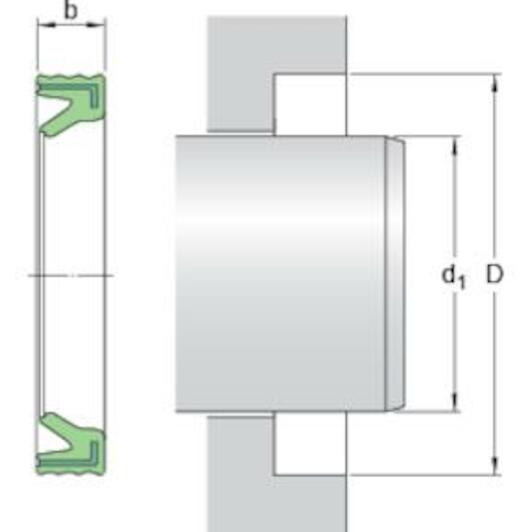

Inner diameter: 12 mm
Outer diameter: 19 mm
Width: 3 mm

Product description

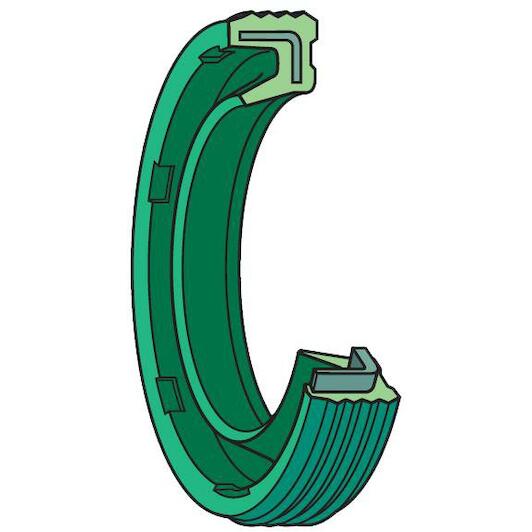

Radial shaft seals with low cross-sectional height are intended for bearing arrangements that incorporate needle roller bearings. These contact seals are designed without garter springs. G design seals are made of rubber, with a single lip. Seals for shaft diameters >= 8 mm are reinforced with sheet steel. The rubber outside diameter enhances the seal around the housing bore and reduces the risk of damage to the seal and housing during installation and removal.

Low cross-sectional height
Retain the lubricant
Exclude contaminants

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 12 mm
Outer diameter: 19 mm
Width: 3 mm
Shaft diameter: 12
Limiting speed: 15915
Sealing lip material: Acrylonitrile-butadiene rubber (NBR)
Auxiliary lip: No
Housing bore diameter: 19
Seal width: 3
Unit system: Metric

Brand SKF
01310001
EAN 7316570082234
Supplier number SKF G 12X19X3

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this SKF radial shaft seal?: This seal has an inside diameter of 12 mm, an outside diameter of 19 mm, and a width of 3 mm.
What applications is the G design intended for?: The low cross-sectional G design is designed for needle roller bearing arrangements to retain lubricant and exclude contaminants.
What material is this seal made of?: The sealing lip is made of NBR (nitrile rubber) and is reinforced with sheet steel.
Does this seal include an auxiliary dust lip?: No, the G design is a single-lip contact seal without an auxiliary dust lip.
What is the operating temperature range?: This NBR seal operates reliably in temperatures ranging from -30 °C to 110 °C.
