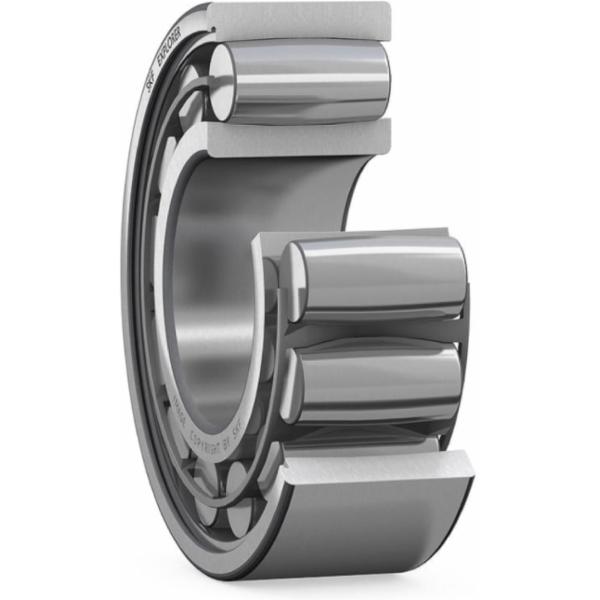

SKF C 2320 K/C3 CARB single-row toroidal roller bearing tapered 1:12 - 100 x 215 x 73 mm

SKF
Supplier number: SKF C 2320 K/C3 | EAN 7316570285352
This product has been discontinued.

✆ Talk to a specialist


Product information

Product information

Key features according to our expert

  • Inner diameter: 100 mm
  • Width: 73 mm
  • Number of rows: 1
  • Radial clearance: C3
  • Material (cage): Brass (sheet)
  • Sealing (bearing): Without seals
  • Material (bearing seal): Not applicable
  • Bore type: Tapered
  • Outer diameter: 215 mm

Product description:

  • A cylindrical roller (and needle) bearing can, to a limited extent, withstand axial displacements
  • But a cylindrical roller bearing cannot accommodate angular displacements
  • In turn, a spherical roller bearing is resistant to angular displacements, but cannot accommodate axial displacements
  • The carb bearing (SKF - since 1995) combines the advantages of a barrel, a cylindrical roller and a needle roller bearing.
  • This bearing not only accommodates angular displacements, but also axial displacements
  • An additional advantage is that this patented bearing type has a much higher radial load carrying capacity than bearings of comparable size

All Features

Inner diameter
100 mm
Width
73 mm
Number of rows
1
Radial clearance
C3
Material (cage)
Brass (sheet)
Sealing (bearing)
Without seals
Material (bearing seal)
Not applicable
Bore type
Tapered
Outer diameter
215 mm
Relubrication feature
Without
Radial internal clearance
C3
Basic static load rating
880 kN
Cage
Sheet metal
Reference speed
2,600 r/min
Skf performance class
SKF Explorer
Lubricant
None
Locating feature, bearing outer ring
Without
Tolerance class
Normal
Basic dynamic load rating
800 kN
Sealing
Without
Limiting speed
3,600 r/min
Bore diameter
100 mm
Outer diameter
215 mm
  • Brand SKF
  • EAN 7316570285352
  • Supplier number SKF C 2320 K/C3
