SKF

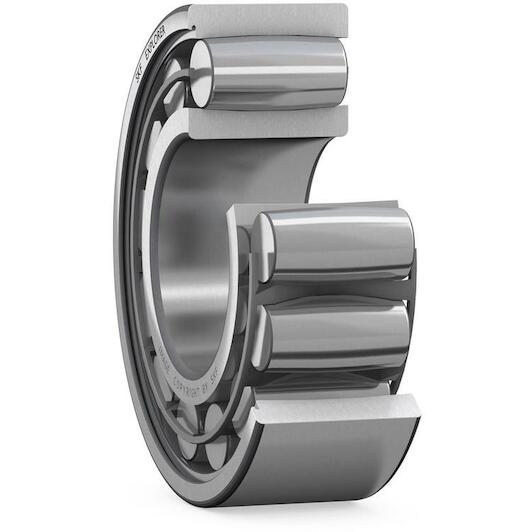

SKF C 2217/C3 CARB single-row toroidal roller bearing cylindrical 85 x 150 x 36 mm

Recommended Retail Price €1,273.94
630.60 tax incl.
€521.16 excl. VAT (incl. all environmental contributions)
On order: delivered from 30/05/2026
each

  • Delivery by DHL

Product description

CARB toroidal roller bearings are unique: as well as accommodating misalignment without increased stress levels, they also provide frictionless axial movement within the bearing in the non-locating position in self-aligning bearing arrangements. Being SKF Explorer bearings, they can accommodate higher load levels and provide significantly extended service life.

  • Accommodate misalignment and axial displacement within the bearing
  • High radial load carrying capacity
  • Provide frictionless axial movement
  • Long bearing system life
  • Reduce noise and vibration levels
Key features according to our expert

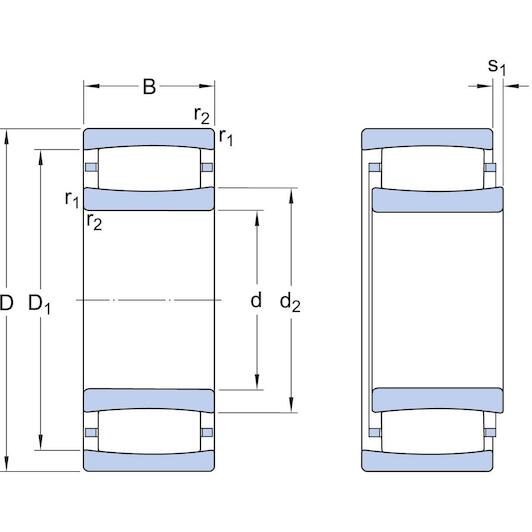

  • Inner diameter: 85 mm
  • Width: 36 mm
  • Number of rows: 1
  • Radial clearance: C3
  • Material (cage): Brass (sheet)
  • Seal (bearing): Without seal
  • Material (bearing seal): Not applicable
  • Bore type: Cylindrical
  • Outer diameter: 150 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316570426670
  • Supplier number: SKF C 2217/C3
Inner diameter
85 mm
Width
36 mm
Number of rows
1
Radial clearance
C3
Material (cage)
Brass (sheet)
Seal (bearing)
Without seal
Material (bearing seal)
Not applicable
Bore type
Cylindrical
Outer diameter
150 mm
Relubrication feature
Without
Radial internal clearance
C3
Basic static load rating
320
Reference speed
4000
Skf performance class
SKF Explorer
Lubricant
None
Cage
Sheet metal
Locating feature, bearing outer ring
Without
Tolerance class
Normal
Basic dynamic load rating
275
Sealing
Without
Limiting speed
5600
Bore diameter
85
Outside diameter
150
Candidate for remanufacturing
Yes
