SKF

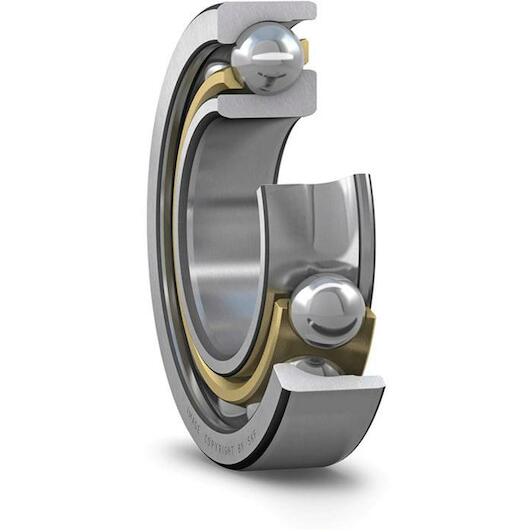

SKF 7324 BCBM single-row angular contact ball bearing 120 x 260 x 55 mm with contact angle 40°

Recommended Retail Price €4,379.35
2,168.20 tax incl.
€1,791.90 excl. VAT (incl. all environmental contributions)
On order: delivered from 28/05/2026
each

  • Delivery by DHL

Product description

These single row angular contact ball bearings can accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They can operate at high speeds and, depending on the variant, even very high speeds. They are more suitable than deep groove ball bearings for supporting large axial forces acting in one direction.

  • High-speed capability
  • Accommodate relatively high radial loads and large unilateral axial loads
Key features according to our expert
  • Inner diameter: 120 mm
  • Width: 55 mm
  • Number of rows: 1
  • Axial clearance: Not applicable
  • Seal (bearing): Without seal
  • Material (bearing seal): Not applicable
  • Material (cage): Brass (solid)
  • Outer diameter: 260 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316576651052
  • Supplier number: SKF 7324 BCBM
Inner diameter
120 mm
Width
55 mm
Number of rows
1
Axial clearance
Not applicable
Seal (bearing)
Without seal
Material (bearing seal)
Not applicable
Material (cage)
Brass (solid)
Outer diameter
260 mm
Basic static load rating
250
Locating feature, bearing outer ring
None
Ring type
One-piece inner and outer rings
Tolerance class
Class P6 (P6)
Contact type
Normal contact (two-point contact)
Lubricant
None
Matched arrangement
No
Relubrication feature
Without
Reference speed
3200
Axial internal clearance
Not applicable
Cage
Machined brass
Material, bearing
Bearing steel
Sealing
Without
Bore diameter
120
Contact angle
40
Limiting speed
3600
Matched condition (axial clearance/ preload)
Axial clearance CB
Basic dynamic load rating
238
Coating
Without
Outside diameter
260
Universal matching bearing
Yes
