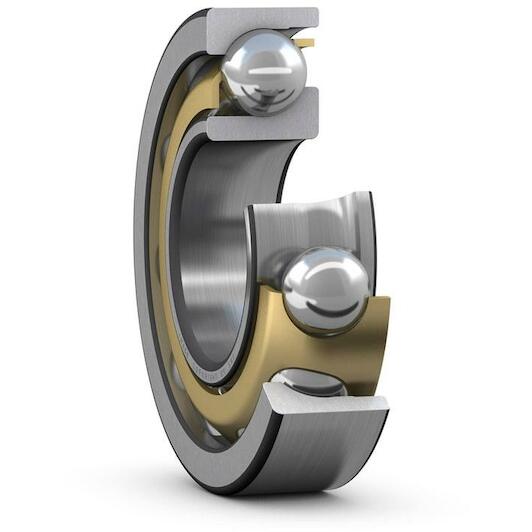

SKF 7322 BECBY single-row angular contact ball bearing 110 x 240 x 50 mm with contact angle 40°

Supplier number: SKF 7322 BECBY | EAN 7316576651021
Recommended Retail Price €3,191.25
1,579.80 tax incl.
€1,305.62 excl. VAT (incl. all environmental contributions)
On order: delivered from 28/10/2026

  • Delivery by DHL


€1,579.80
tax incl.

Product information

Key features according to our expert

  • Inner diameter: 110 mm
  • Width: 50 mm
  • Number of rows: 1
  • Axial clearance: Not applicable
  • Sealing (bearing): Without seals
  • Material (bearing seal): Not applicable
  • Material (cage): Brass (sheet)
  • Outer diameter: 240 mm

Product description

These single row angular contact ball bearings can accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They can operate at high speeds and, depending on the variant, even very high speeds. They are more suitable than deep groove ball bearings for supporting large axial forces acting in one direction.

  • High-speed capability
  • Accommodate relatively high radial loads and large unilateral axial loads

Documents

All Features

Inner diameter
110 mm
Width
50 mm
Number of rows
1
Axial clearance
Not applicable
Sealing (bearing)
Without seals
Material (bearing seal)
Not applicable
Material (cage)
Brass (sheet)
Outer diameter
240 mm
Matched arrangement
No
Ring type
One-piece inner and outer rings
Tolerance class
Class P6 (P6)
Contact type
Normal contact (two-point contact)
Basic static load rating
245
Lubricant
None
Relubrication feature
Without
Reference speed
3400
Skf performance class
SKF Explorer
Sealing
Without
Cage
Brass sheet metal
Material, bearing
Bearing steel
Locating feature, bearing outer ring
None
Bore diameter
110
Axial internal clearance
Not applicable
Contact angle
40
Limiting speed
3600
Matched condition (axial clearance/ preload)
Axial clearance CB
Basic dynamic load rating
240
Coating
Without
Outer diameter
240
Universal matching bearing
Yes
  • Brand SKF
  • EAN 7316576651021
  • Supplier number SKF 7322 BECBY
