SKF

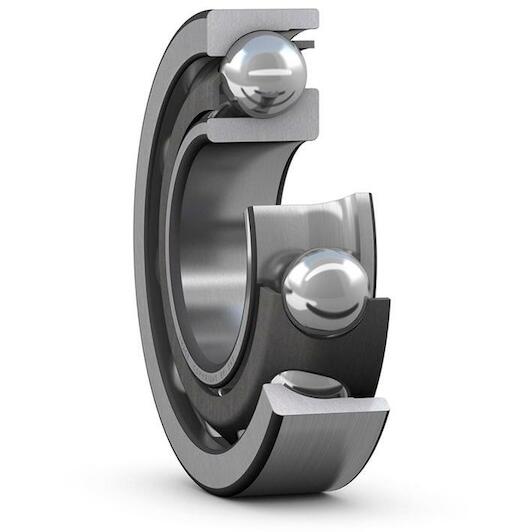

SKF 7317 BECBJ single-row angular contact ball bearing 85 x 180 x 41 mm with contact angle 40°

Recommended Retail Price €1,309.24
648.20 tax incl.
€535.70 excl. VAT (incl. all environmental contributions)
On order: delivered from 30/05/2026
each

  • Delivery by DHL

Product description

These single row angular contact ball bearings can accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They can operate at high speeds and, depending on the variant, even very high speeds. They are more suitable than deep groove ball bearings for supporting large axial forces acting in one direction.

  • High-speed capability
  • Accommodate relatively high radial loads and large unilateral axial loads
Key features according to our expert
  • Inner diameter: 85 mm
  • Width: 41 mm
  • Number of rows: 1
  • Axial clearance: Not applicable
  • Seal (bearing): Without seal
  • Material (bearing seal): Not applicable
  • Material (cage): Sheet steel
  • Outer diameter: 180 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316571106663
  • Supplier number: SKF 7317 BECBJ
Inner diameter
85 mm
Width
41 mm
Number of rows
1
Axial clearance
Not applicable
Seal (bearing)
Without seal
Material (bearing seal)
Not applicable
Material (cage)
Sheet steel
Outer diameter
180 mm
Matched arrangement
No
Ring type
One-piece inner and outer rings
Tolerance class
Class P6 (P6)
Contact type
Normal contact (two-point contact)
Basic static load rating
132
Lubricant
None
Relubrication feature
Without
Reference speed
4500
Skf performance class
SKF Explorer
Sealing
Without
Cage
Steel sheet metal
Material, bearing
Bearing steel
Locating feature, bearing outer ring
None
Bore diameter
85
Axial internal clearance
Not applicable
Contact angle
40
Limiting speed
4800
Matched condition (axial clearance/ preload)
Axial clearance CB
Basic dynamic load rating
156
Coating
Without
Outside diameter
180
Universal matching bearing
Yes
