SKF

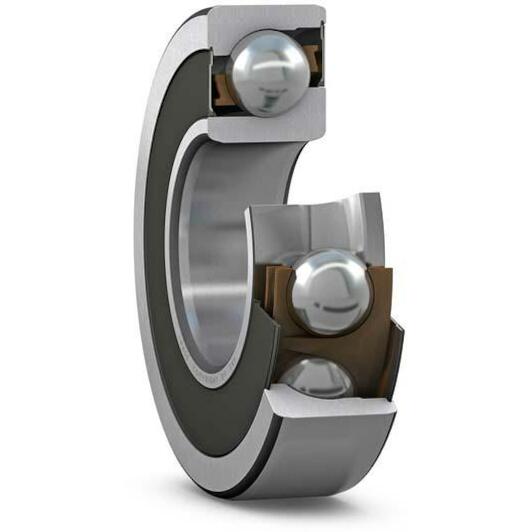

SKF 7309 BE-2RZP single-row angular contact ball bearing with 40° contact angle and non-slipping seal on both sides 45 mm

Recommended Retail Price €226.60
111.95 tax incl.
€92.52 excl. VAT (incl. all environmental contributions)
On order: delivered from 26/05/2026
each

  • Delivery by DHL

Product description

These single row angular contact ball bearings, with 40° contact angle and non-contact seals on both sides, accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They have a ball-centred glass-fibre reinforced PA66 cage. They are more suitable than deep groove ball bearings for supporting large axial forces acting in one direction.

  • 40° contact angle
  • Integral sealing prolongs bearing service life
  • Glass-fibre reinforced PA66 cage
  • Accommodate relatively high radial loads and large unilateral axial loads
Key features according to our expert
  • Inner diameter: 45 mm
  • Width: 25 mm
  • Number of rows: 1
  • Axial clearance: Not applicable
  • Seal (bearing): Double-sided sealed
  • Material (cage): Plastic
  • Outer diameter: 100 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316577177773
  • Supplier number: SKF 7309 BE-2RZP
Inner diameter
45 mm
Width
25 mm
Number of rows
1
Axial clearance
Not applicable
Seal (bearing)
Double-sided sealed
Material (cage)
Plastic
Outer diameter
100 mm
Matched arrangement
No
Tolerance class
Normal
Contact type
Normal contact (two-point contact)
Basic static load rating
37.5
Sealing type
Non-contact
Relubrication feature
Without
Reference speed
8500
Lubricant
Grease
Locating feature, bearing outer ring
None
Cage
Non-metallic
Material, bearing
Bearing steel
Ring type
One-piece inner and outer rings
Bore diameter
45
Sealing
Seal on both sides
Contact angle
40
Limiting speed
6700
Basic dynamic load rating
55.9
Coating
Without
Outside diameter
100
Universal matching bearing
No
