SKF

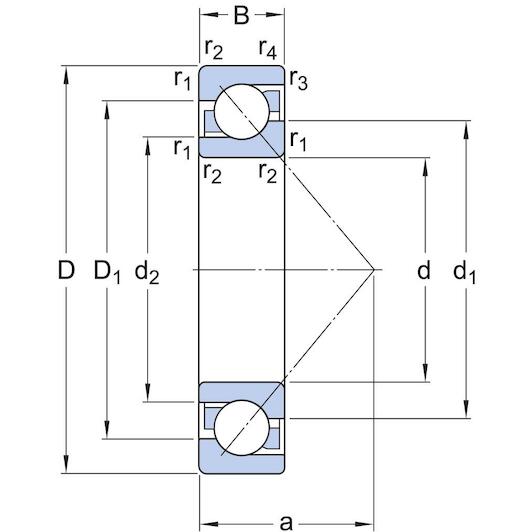

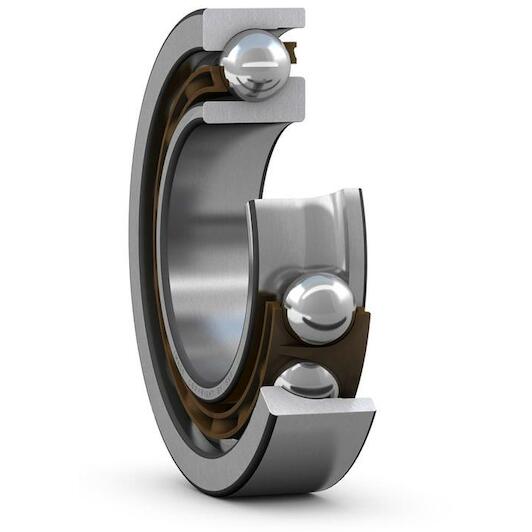

SKF 7308 BEP single-row angular contact ball bearing 40 x 90 x 23 mm with contact angle 40°

Recommended Retail Price €146.34
72.40 tax incl.
€59.83 excl. VAT (incl. all environmental contributions)
On stock, immediately available. we have 5 products in stock.
each

  • Delivery by DHL

Product description

These single row angular contact ball bearings can accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They can operate at high speeds and, depending on the variant, even very high speeds. They are more suitable than deep groove ball bearings for supporting large axial forces acting in one direction.

  • High-speed capability
  • Accommodate relatively high radial loads and large unilateral axial loads
Key features according to our expert
  • Inner diameter: 40 mm
  • Width: 23 mm
  • Number of rows: 1
  • Axial clearance: Not applicable
  • Seal (bearing): Without seal
  • Material (bearing seal): Not applicable
  • Material (cage): Plastic
  • Outer diameter: 90 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316576634130
  • Supplier number: SKF 7308 BEP
Inner diameter
40 mm
Width
23 mm
Number of rows
1
Axial clearance
Not applicable
Seal (bearing)
Without seal
Material (bearing seal)
Not applicable
Material (cage)
Plastic
Outer diameter
90 mm
Basic static load rating
30.5
Ring type
One-piece inner and outer rings
Tolerance class
Normal
Contact type
Normal contact (two-point contact)
Lubricant
None
Matched arrangement
No
Relubrication feature
Without
Reference speed
9500
Sealing
Without
Cage
Non-metallic
Material, bearing
Bearing steel
Locating feature, bearing outer ring
None
Axial internal clearance
Not applicable
Contact angle
40
Limiting speed
9000
Bore diameter
40
Basic dynamic load rating
46.2
Coating
Without
Outside diameter
90
Universal matching bearing
No
