What loads can this angular contact ball bearing support?

It is designed for combined loads: simultaneously acting radial loads and axial loads in one direction.

What are the exact dimensions of this SKF bearing?

The bearing has an inside diameter of 40 mm, an outside diameter of 90 mm, and a width of 23 mm.

What is the purpose of the 40° contact angle?

A 40° contact angle provides high axial load-carrying capacity and rigidity for unilateral axial loads.

What material is the cage of the SKF 7308 BEGAP made of?

This bearing features a glass-fibre reinforced polyamide (plastic) cage.

Does this SKF bearing come with seals?

No, this is an open bearing without seals and requires appropriate lubrication upon installation.

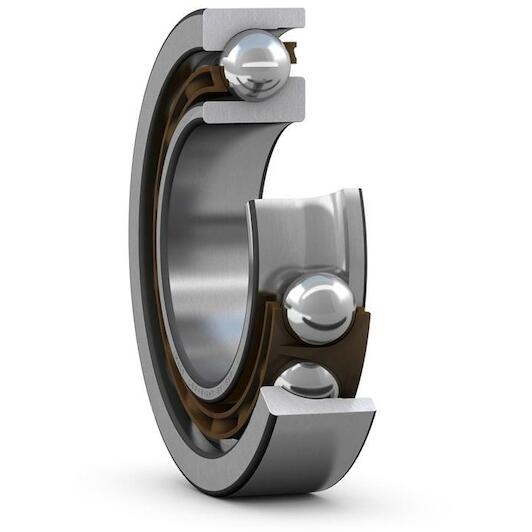

SKF 7308 BEGAP single-row angular contact ball bearing 40 x 90 x 23 mm with contact angle 40°

Supplier number: SKF 7308 BEGAP | EAN 7316577150554

Recommended Retail Price €210.52

104.20 tax incl.

€86.12 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 2 products in stock.

Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Dependable performance with Skf

Practical benefits

High combined load capacity: You reliably accommodate heavy radial and unilateral axial forces thanks to the robust 40° contact angle.
Smooth high speed operation: The lightweight polymer cage reduces internal friction, allowing you to run smoothly at high rotational speeds.
Effortless universal matching: Designed for universal pairing, you can easily install this single-row bearing in sets with light preload.

In a nutshell

The right choise for

With the Skf 7308 begap single-row angular contact ball bearing, you ensure dependable performance and optimal load handling across demanding industrial applications. Engineered with a 40° contact angle, this open bearing accommodates combined loads, supporting heavy radial forces alongside strong single-direction axial thrust loads. The lightweight glass-fibre reinforced polyamide cage reduces friction and operational noise, keeping pump, compressor, and gearbox shaft assemblies running smoothly at high rotational speeds. Measuring 40 x 90 x 23 mm, its universally matchable design allows for effortless installation in paired bearing arrangements with light preload.

Product information FAQ

€104.20

In stock - tax incl.

Key features according to our expert

Inner diameter: 40 mm
Width: 23 mm
Number of rows: 1
Axial clearance: Not applicable
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Material (cage): Plastic
Outer diameter: 90 mm

Product description

These single row angular contact ball bearings can accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They can operate at high speeds and, depending on the variant, even very high speeds. They are more suitable than deep groove ball bearings for supporting large axial forces acting in one direction.

High-speed capability
Accommodate relatively high radial loads and large unilateral axial loads

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 40 mm
Width: 23 mm
Number of rows: 1
Axial clearance: Not applicable
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Material (cage): Plastic
Outer diameter: 90 mm
Matched arrangement: No
Ring type: One-piece inner and outer rings
Tolerance class: Class P6 (P6)
Contact type: Normal contact (two-point contact)
Basic static load rating: 32.5
Lubricant: None
Relubrication feature: Without
Reference speed: 9500
Skf performance class: SKF Explorer
Sealing: Without
Cage: Non-metallic
Material, bearing: Bearing steel
Locating feature, bearing outer ring: None
Bore diameter: 40
Axial internal clearance: Not applicable
Contact angle: 40
Limiting speed: 10000
Matched condition (axial clearance/ preload): Light preload
Basic dynamic load rating: 50
Coating: Without
Outer diameter: 90
Universal matching bearing: Yes

Brand SKF
01051563
EAN 7316577150554
Supplier number SKF 7308 BEGAP

Frequently asked questions about this product

Answered by specialists

What loads can this angular contact ball bearing support?: It is designed for combined loads: simultaneously acting radial loads and axial loads in one direction.
What are the exact dimensions of this SKF bearing?: The bearing has an inside diameter of 40 mm, an outside diameter of 90 mm, and a width of 23 mm.
What is the purpose of the 40° contact angle?: A 40° contact angle provides high axial load-carrying capacity and rigidity for unilateral axial loads.
What material is the cage of the SKF 7308 BEGAP made of?: This bearing features a glass-fibre reinforced polyamide (plastic) cage.
Does this SKF bearing come with seals?: No, this is an open bearing without seals and requires appropriate lubrication upon installation.
