What are the dimensions of this angular contact ball bearing?

The bearing has a 40 mm bore diameter, a 90 mm outside diameter, and a width of 23 mm.

Which loads can the SKF 7308 BECBP accommodate?

It is designed for combined loads, handling radial and axial forces acting simultaneously in one direction.

What is the purpose of the 40° contact angle?

The 40° contact angle enables a higher axial load carrying capacity compared to standard deep groove ball bearings.

What material is the cage made of?

The cage of this variant is made of glass-fibre reinforced polyamide.

Is this bearing sealed?

No, this is an open bearing without seals, suitable for lubrication with oil or grease.

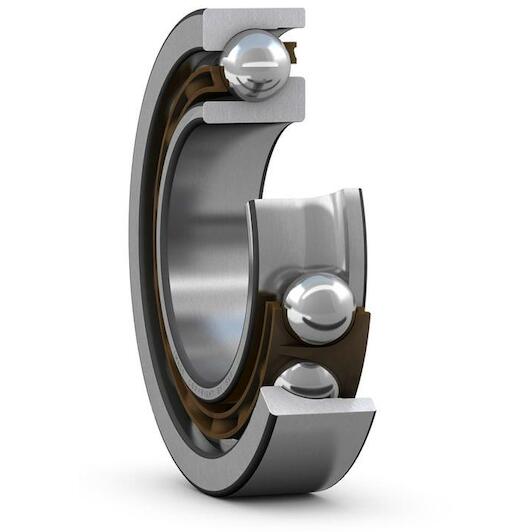

SKF 7308 BECBP single-row angular contact ball bearing 40 x 90 x 23 mm with contact angle 40°

Supplier number: SKF 7308 BECBP | EAN 7316577067821

Recommended Retail Price €217.04

107.40 tax incl.

€88.76 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 2 products in stock.

Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Dependable performance by Skf

Practical benefits

High combined load capacity: With a 40° contact angle, you reliably support heavy radial forces alongside substantial unilateral axial loads.
Smooth high speed operation: The lightweight polyamide cage reduces friction, allowing you to run machinery smoothly and quietly at high rotational speeds.

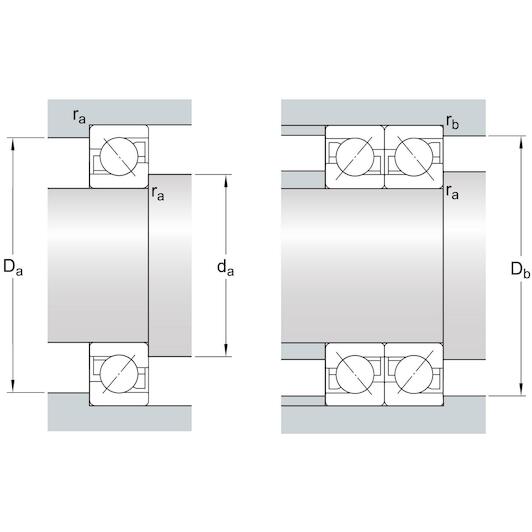

Easy universal matching: You can mount bearings back-to-back or face-to-face without shims to achieve correct internal clearance effortlessly.

In a nutshell

The right choise for

With the Skf 7308 becbp single row angular contact ball bearing, you ensure dependable power transmission and precise shaft guidance in demanding industrial machinery. Featuring a 40° contact angle, it reliably supports heavy radial forces alongside substantial unidirectional axial loads in pumps, compressors, and gearboxes. The lightweight glass-fibre reinforced polyamide cage minimizes friction and vibration, keeping your equipment running smoothly and quietly even at high rotational speeds. Designed for universal matching, this open 40 x 90 x 23 mm bearing mounts effortlessly in back-to-back or face-to-face arrangements without shims, helping you achieve accurate alignment and efficient maintenance with ease.

Product information FAQ

€107.40

In stock - tax incl.

Key features according to our expert

Inner diameter: 40 mm
Width: 23 mm
Number of rows: 1
Axial clearance: Not applicable
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Material (cage): Plastic
Outer diameter: 90 mm

Product description

These single row angular contact ball bearings can accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They can operate at high speeds and, depending on the variant, even very high speeds. They are more suitable than deep groove ball bearings for supporting large axial forces acting in one direction.

High-speed capability
Accommodate relatively high radial loads and large unilateral axial loads

Documents

⤓ Technical data sheet PDF

All Features

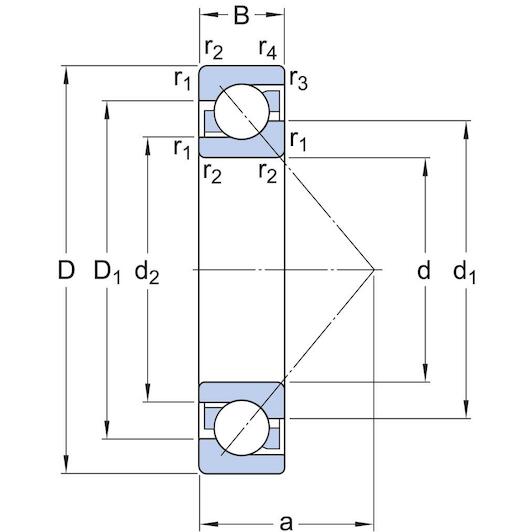

Inner diameter: 40 mm
Width: 23 mm
Number of rows: 1
Axial clearance: Not applicable
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Material (cage): Plastic
Outer diameter: 90 mm
Matched arrangement: No
Ring type: One-piece inner and outer rings
Tolerance class: Class P6 (P6)
Contact type: Normal contact (two-point contact)
Basic static load rating: 32.5
Lubricant: None
Relubrication feature: Without
Reference speed: 9500
Skf performance class: SKF Explorer
Sealing: Without
Cage: Non-metallic
Material, bearing: Bearing steel
Locating feature, bearing outer ring: None
Bore diameter: 40
Axial internal clearance: Not applicable
Contact angle: 40
Limiting speed: 10000
Matched condition (axial clearance/ preload): Axial clearance CB
Basic dynamic load rating: 50
Coating: Without
Outer diameter: 90
Universal matching bearing: Yes

Brand SKF
01050480
EAN 7316577067821
Supplier number SKF 7308 BECBP

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this angular contact ball bearing?: The bearing has a 40 mm bore diameter, a 90 mm outside diameter, and a width of 23 mm.
Which loads can the SKF 7308 BECBP accommodate?: It is designed for combined loads, handling radial and axial forces acting simultaneously in one direction.
What is the purpose of the 40° contact angle?: The 40° contact angle enables a higher axial load carrying capacity compared to standard deep groove ball bearings.
What material is the cage made of?: The cage of this variant is made of glass-fibre reinforced polyamide.
Is this bearing sealed?: No, this is an open bearing without seals, suitable for lubrication with oil or grease.
