SKF

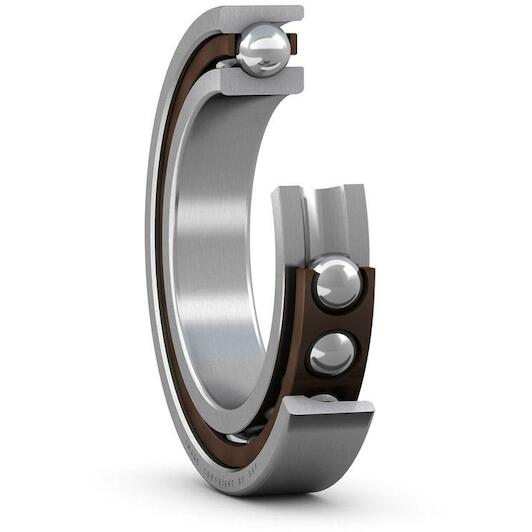

SKF 7210 ACD/P4A single-row super-precision angular contact ball bearing 50 x 90 x 20 mm with contact angle 25°

Recommended Retail Price €858.42
424.95 tax incl.
€351.20 excl. VAT (incl. all environmental contributions)
On order: delivered from 28/05/2026
each

  • Delivery by DHL

Product description

  • These super-precision, high-capacity, single row angular contact ball bearings, with 25° contact angle, accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They are designed to accommodate heavy loads at relatively high speeds under low to moderate operating temperatures.

Avantages

  • Very high running accuracy
  • Very high load carrying capacity
  • Relatively high speed and stiffness
Key features according to our expert
  • Inner diameter: 50 mm
  • Width: 20 mm
  • Number of rows: 1
  • Seal (bearing): Without seal
  • Material (bearing seal): Not applicable
  • Outer diameter: 90 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316570698565
  • Supplier number: SKF 7210 ACD/P4A
Inner diameter
50 mm
Width
20 mm
Number of rows
1
Seal (bearing)
Without seal
Material (bearing seal)
Not applicable
Outer diameter
90 mm
Basic static load rating
32.5 kN
Ring type
One-piece inner and outer rings
Tolerance class
P4A
Contact type
Normal contact (two-point contact)
Design
High-capacity D
Matched arrangement
No
Lubricant
None
Attainable speed for oil-air lubrication
22,000 r/min
Material, bearing
Bearing steel
Attainable speed for grease lubrication
14,000 r/min
Sealing
Without
Contact angle
25 °
Matched condition (axial clearance/ preload)
Not applicable
Bore diameter
50 mm
Basic dynamic load rating
42.3 kN
Coating
Without
Outside diameter
90 mm
Universal matching bearing
No
