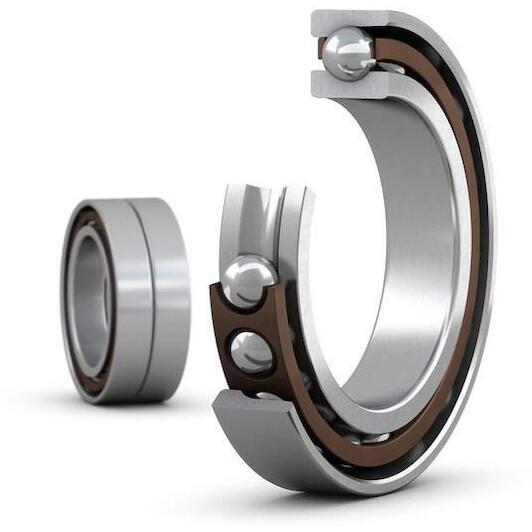

SKF 7209 CD/P4ADBA Single-row angular contact ball bearing set D-design high load capacity pairable 45 mm 2-piece

Recommended Retail Price €1,599.78
791.95 tax incl.
€654.50 excl. VAT (incl. all environmental contributions)
On order: delivered from 26/05/2026
each

  • Delivery by DHL

Product description

  • These matched sets of two super-precision, high-capacity, D design, single row angular contact ball bearings are available in a variety of arrangements. They are designed for high-load capacity and relatively high speed operation and, compared to the equivalent SKF B and E design high-speed bearings, are best suited for heavier loads.

Avantages

  • Very high running accuracy
  • Very high load carrying capacity
Key features according to our expert
  • Inner diameter: 45 mm
  • Width: 38 mm
  • Number of rows: 2
  • Seal (bearing): Without seal
  • Outer diameter: 85 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316570341904
  • Supplier number: SKF 7209 CD/P4ADBA
Inner diameter
45 mm
Width
38 mm
Number of rows
2
Seal (bearing)
Without seal
Outer diameter
85 mm
Contact angle
15 °
Material, bearing
Bearing steel
Design
High-capacity D
Lubricant
None
Matched arrangement
Back-to-back <>
Basic static load rating
62 kN
Contact type
Normal contact (two-point contact)
Tolerance class
P4A
Number of bearings in matched set
2
Ring type
One-piece inner and outer rings
Sealing
Without
Matched condition (axial clearance/ preload)
Extra light preload
Bore diameter
45 mm
Basic dynamic load rating
70.2 kN
Coating
Without
Outside diameter
85 mm
Universal matching bearing
No
