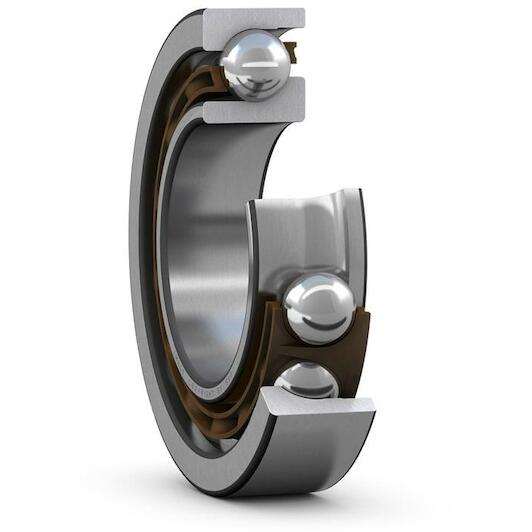

SKF 7202 BECBP single-row angular contact ball bearing 15 x 35 x 11 mm with contact angle 40°

Supplier number: SKF 7202 BECBP | EAN 7316576649707

Recommended Retail Price €103.09

50.95 tax incl.

€42.11 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 2 products in stock.

Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Reliable load distribution for combined forces

Practical benefits

Skf handles high speeds: You achieve smooth operation at high rotational speeds thanks to the lightweight polymer cage design.
Accommodates heavy axial loads: The 40° contact angle allows you to support simultaneous radial and strong single-direction axial loads.
Compact and accurate fit: Standard dimensions of 15 x 35 x 11 mm ensure you achieve precise integration in tight assemblies.

In a nutshell

The right choise for

With the Skf 7202 becbp angular contact ball bearing, you reliably accommodate simultaneous radial forces and heavy single-direction axial loads. Its 40° contact angle combined with a lightweight polyamide cage delivers smooth operation at high rotational speeds with minimal friction. Standardized dimensions of 15 x 35 x 11 mm ensure accurate and secure fitting in industrial pumps, compressors, and electric motor assemblies.

Product information FAQ

€50.95

In stock - tax incl.

Key features according to our expert

Inner diameter: 15 mm
Width: 11 mm
Number of rows: 1
Axial clearance: Not applicable
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Material (cage): Plastic
Outer diameter: 35 mm

Product description

These single row angular contact ball bearings can accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They can operate at high speeds and, depending on the variant, even very high speeds. They are more suitable than deep groove ball bearings for supporting large axial forces acting in one direction.

High-speed capability
Accommodate relatively high radial loads and large unilateral axial loads

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 15 mm
Width: 11 mm
Number of rows: 1
Axial clearance: Not applicable
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Material (cage): Plastic
Outer diameter: 35 mm
Matched arrangement: No
Ring type: One-piece inner and outer rings
Tolerance class: Class P6 (P6)
Contact type: Normal contact (two-point contact)
Basic static load rating: 4.65
Lubricant: None
Relubrication feature: Without
Reference speed: 24000
Skf performance class: SKF Explorer
Sealing: Without
Cage: Non-metallic
Material, bearing: Bearing steel
Locating feature, bearing outer ring: None
Bore diameter: 15
Axial internal clearance: Not applicable
Contact angle: 40
Limiting speed: 26000
Matched condition (axial clearance/ preload): Axial clearance CB
Basic dynamic load rating: 8.8
Coating: Without
Outer diameter: 35
Universal matching bearing: Yes

Brand SKF
01050420
EAN 7316576649707
Supplier number SKF 7202 BECBP

Frequently asked questions about this product

Answered by specialists

What types of load can this angular contact ball bearing handle?: It is designed for combined loads, simultaneously accommodating radial forces and high axial forces in one direction.
What are the exact dimensions of this bearing?: This bearing has a 15 mm bore diameter, a 35 mm outer diameter, and an 11 mm width.
What cage material does the SKF 7202 BECBP have?: This bearing features a glass-fibre reinforced polyamide (plastic) cage.
Is this ball bearing sealed?: No, this is an open bearing without seals, designed for lubrication during assembly or within a lubricated housing.
What is the contact angle of this bearing?: The bearing has a 40° contact angle, providing high axial load carrying capacity.
