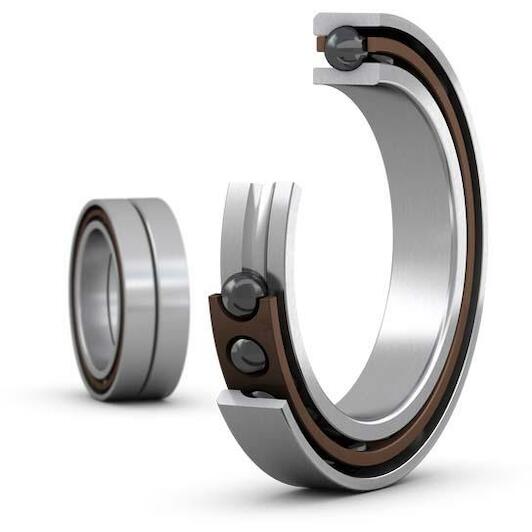

SKF 71908 ACE/HCP4ADGA Single-row angular contact ball bearing set high speed E-design, matched 40 mm 2-piece

Recommended Retail Price €1,979.37

979.80 tax incl.

€809.75 excl. VAT (incl. all environmental contributions)

SKF 71908 ACE/HCP4ADGA Single-row angular contact ball bearing set high speed E-design, matched 40 mm 2-piece

€979.80 Recommended Retail Price €1,979.37

On order: delivered from 26/05/2026

each

Delivery by DHL

Product information

Product description

These matched sets of two super-precision, high-speed, E design, single row angular contact ball bearings are available in a variety of arrangements. Compared to the equivalent SKF B design high-speed bearings, these have a slightly higher speed capability and can accommodate heavier loads.

Very high running accuracy
Accommodate very high speeds

Key features according to our expert

Inner diameter: 40 mm
Width: 24 mm
Number of rows: 2
Axial clearance: Not applicable
Seal (bearing): Without seal
Material (bearing seal): Not applicable
Material (cage): Plastic
Outer diameter: 62 mm

Specifications / All features

Brand: SKF
08124106
EAN: 07316576002878
Supplier number: SKF 71908 ACE/HCP4ADGA

Inner diameter: 40 mm
Width: 24 mm
Number of rows: 2
Axial clearance: Not applicable
Seal (bearing): Without seal
Material (bearing seal): Not applicable
Material (cage): Plastic
Outer diameter: 62 mm
Basic static load rating: 11.4
Number of bearings in matched set: 2
Tolerance class: P4A
Contact type: Normal contact (two-point contact)
Cage: Non-metallic
Matched arrangement: Universal matching
Lubricant: None
Design: High-speed E
Sealing: Without
Material, bearing: Hybrid (ceramic balls)
Universal matching bearing: Yes, back-to-back (<>), face-to-face (><) or tandem (>>)
Ring type: One-piece inner and outer rings
Contact angle: 25
Matched condition (axial clearance/ preload): Extra light preload
Bore diameter: 40
Basic dynamic load rating: 15.1
Coating: Without
Outside diameter: 62
Note: Refer to catalogue data or contact SKF for the attainable speeds
