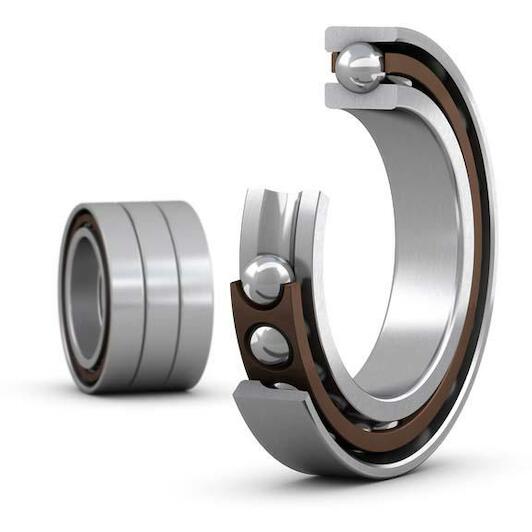

SKF 7012 ACD/P4ATGA Single-row aligned angular contact ball bearing set high capacity D-design 60 mm 3-piece

Recommended Retail Price €2,674.10

1,323.80 tax incl.

€1,094.05 excl. VAT (incl. all environmental contributions)

SKF 7012 ACD/P4ATGA Single-row aligned angular contact ball bearing set high capacity D-design 60 mm 3-piece

€1,323.80 Recommended Retail Price €2,674.10

On order: delivered from 26/05/2026

each

Delivery by DHL

Product information

Product description

These sets of three matched super-precision angular contact ball bearings are available as universally matchable bearings or as preconfigured arrangements. Sets arranged in back-to-back and tandem, or face-to-face and tandem, are available in different preload classes and correct mounting results in preload within a predetermined range, without the need for shims or similar devices. Sets of three bearings paired in tandem need to be mounted against a single bearing, or another set of bearings in tandem, to achieve the desired preload. The bore and outside diameters of the bearings are matched to within a maximum of one-third of the permitted diameter tolerance, to provide better load distribution than single universally matchable bearings.

Very high running accuracy
High axial and radial stiffness
High axial and radial load carrying capacity

Key features according to our expert

Inner diameter: 60 mm
Width: 54 mm
Number of rows: 3
Axial clearance: Not applicable
Seal (bearing): Without seal
Material (bearing seal): Not applicable
Material (cage): Plastic
Outer diameter: 95 mm

Specifications / All features

Brand: SKF
08123941
EAN: 07316573301400
Supplier number: SKF 7012 ACD/P4ATGA

Inner diameter: 60 mm
Width: 54 mm
Number of rows: 3
Axial clearance: Not applicable
Seal (bearing): Without seal
Material (bearing seal): Not applicable
Material (cage): Plastic
Outer diameter: 95 mm
Basic static load rating: 100
Number of bearings in matched set: 3
Tolerance class: P4A
Contact type: Normal contact (two-point contact)
Cage: Non-metallic
Matched arrangement: Universal matching
Lubricant: None
Design: High-capacity D
Sealing: Without
Material, bearing: Bearing steel
Universal matching bearing: Yes, back-to-back (<>), face-to-face (><) or tandem (>>)
Ring type: One-piece inner and outer rings
Contact angle: 25
Matched condition (axial clearance/ preload): Extra light preload
Bore diameter: 60
Basic dynamic load rating: 83.2
Coating: Without
Outside diameter: 95
Note: Refer to catalogue data or contact SKF for the attainable speeds
