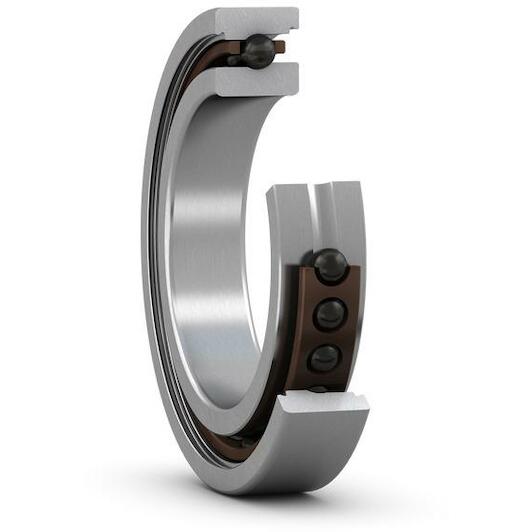

SKF 7008 ACBGA/HCP4A Single-row angular contact ball bearing high speed B-design universal pairing

Recommended Retail Price €1,058.98

524.20 tax incl.

€433.22 excl. VAT (incl. all environmental contributions)

SKF 7008 ACBGA/HCP4A Single-row angular contact ball bearing high speed B-design universal pairing

€524.20 Recommended Retail Price €1,058.98

On order: delivered from 23/05/2026

each

Delivery by DHL

Product information

Product description

These super-precision, high-speed, single row angular contact ball bearings with 15° or 25° contact angle accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. Compared to the equivalent SKF E design high-speed bearings, these are suited for lighter loads. Being universally matchable, they can be used together in arrangements to provide effective load sharing, within a predetermined preload range, without the use of shims or similar devices.

Very high running accuracy
Accommodate high speeds
Reduced stresses on rolling contact surfaces
Universally matchable

Key features according to our expert

Inner diameter: 40 mm
Width: 15 mm
Number of rows: 1
Axial clearance: Not applicable
Seal (bearing): Without seal
Material (bearing seal): Not applicable
Material (cage): Plastic
Outer diameter: 68 mm

Specifications / All features

Brand: SKF
08126119
EAN: 07316574531813
Supplier number: SKF 7008 ACBGA/HCP4A

Inner diameter: 40 mm
Width: 15 mm
Number of rows: 1
Axial clearance: Not applicable
Seal (bearing): Without seal
Material (bearing seal): Not applicable
Material (cage): Plastic
Outer diameter: 68 mm
Matched arrangement: No
Tolerance class: P4A
Contact type: Normal contact (two-point contact)
Basic static load rating: 5.3
Material, bearing: Hybrid (ceramic balls)
Lubricant: None
Design: High-speed B
Cage: Non-metallic
Sealing: Without
Universal matching bearing: Yes, back-to-back (<>), face-to-face (><) or tandem (>>)
Ring type: One-piece inner and outer rings
Basic dynamic load rating: 6.89
Contact angle: 25
Matched condition (axial clearance/ preload): Measuring load, class A
Bore diameter: 40
Coating: Without
Outside diameter: 68
Note: Refer to catalogue data or contact SKF for the attainable speeds
