What are the dimensions of this bearing?

The bearing has a 55 mm bore diameter, a 140 mm outside diameter, and a 33 mm width.

Does the SKF 6411 have seals?

No, this is an open deep groove ball bearing without seals, suitable for external oil or grease lubrication.

What radial internal clearance does this bearing have?

This bearing has standard normal radial internal clearance (CN).

What loads can this bearing support?

This single-row deep groove ball bearing accommodates both radial and axial loads in both directions.

What type of bore does this bearing have?

It features a cylindrical bore for direct mounting onto a straight shaft.

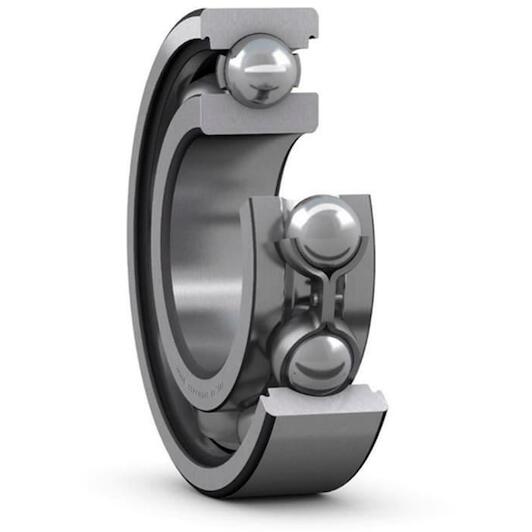

SKF 6411 single-row groove ball bearing cylindrical 55x140x33 mm

Supplier number: SKF 6411 | EAN 7316576621192

Recommended Retail Price €401.42

198.60 tax incl.

€164.13 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 3 products in stock.

Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Reliable motion with Skf

Practical benefits

High radial load capacity: You reliably accommodate heavy radial and bidirectional axial loads thanks to the optimized deep groove geometry.
Low friction high speed: The open cylindrical design ensures minimal operating friction, delivering smooth performance and reduced vibration at high rotational speeds.
Robust bearing steel build: Built from premium bearing steel, this component gives you long-lasting operational reliability under demanding industrial conditions.

In a nutshell

The right choise for

With the Skf 6411 single-row deep groove ball bearing, you keep heavy industrial machinery running smoothly and reliably. Thanks to its robust steel construction and deep raceway geometry, you effortlessly handle high radial forces and axial loads in both directions. The 55 mm cylindrical bore allows direct mounting onto straight shafts, while the open design with normal radial internal clearance (CN) minimizes friction and ensures smooth performance at high rotational speeds. Measuring 55X140X33 mm, this bearing is ideal for clean lubricated systems such as electric motors, gearboxes, and pumps, giving you maximum operational dependability under demanding conditions.

Product information FAQ

€198.60

In stock - tax incl.

Key features according to our expert

Inner diameter: 55 mm
Width: 33 mm
Number of rows: 1
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Radial clearance: CN (Normal)
Material (bearing): Steel
Material (cage): Brass (sheet)
Bore type: Cylindrical
High temperature: No
Outer diameter: 140 mm

Product description

Single row deep groove ball bearings are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types.

Avantages

Simple, versatile and robust design
Low friction
High-speed capability
Accommodate radial and axial loads in both directions
Require little maintenance

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 55 mm
Width: 33 mm
Number of rows: 1
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Radial clearance: CN (Normal)
Material (bearing): Steel
Material (cage): Brass (sheet)
Bore type: Cylindrical
High temperature: No
Outer diameter: 140 mm
Matched arrangement: No
Tolerance class: Normal
Radial internal clearance: CN
Basic static load rating: 62
Material, bearing: Bearing steel
Relubrication feature: Without
Reference speed: 11000
Lubricant: None
Cage: Sheet metal
Locating feature, bearing outer ring: None
Filling slots: Without
Coating: Without
Sealing: Without
Limiting speed: 7000
Bore diameter: 55
Basic dynamic load rating: 99.5
Outer diameter: 140

Brand SKF
01010383
EAN 7316576621192
Supplier number SKF 6411

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this bearing?: The bearing has a 55 mm bore diameter, a 140 mm outside diameter, and a 33 mm width.
Does the SKF 6411 have seals?: No, this is an open deep groove ball bearing without seals, suitable for external oil or grease lubrication.
What radial internal clearance does this bearing have?: This bearing has standard normal radial internal clearance (CN).
What loads can this bearing support?: This single-row deep groove ball bearing accommodates both radial and axial loads in both directions.
What type of bore does this bearing have?: It features a cylindrical bore for direct mounting onto a straight shaft.
