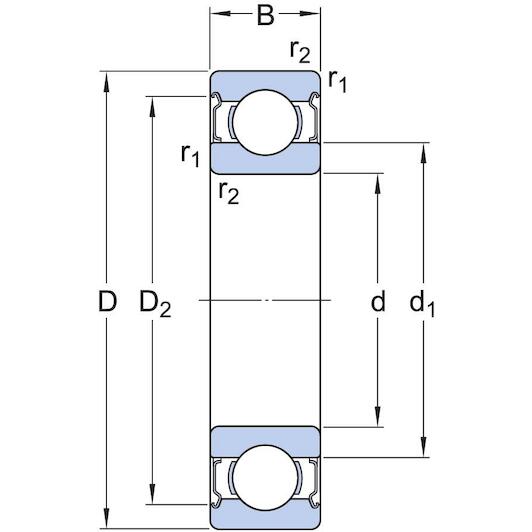

What are the dimensions of this deep groove ball bearing?

This bearing has a bore diameter of 95 mm, an outside diameter of 200 mm, and a width of 45 mm.

What does the 2Z designation mean?

The 2Z suffix indicates metal shields on both sides to protect against dirt and debris.

What does the C3 radial internal clearance mean?

C3 clearance is greater than standard internal clearance, making it suitable for high speeds and thermal expansion.

What types of loads can this bearing accommodate?

This single row deep groove ball bearing accommodates both radial and axial loads in both directions.

What bore type does this bearing have?

It features a standard cylindrical bore for direct mounting on a 95 mm shaft.

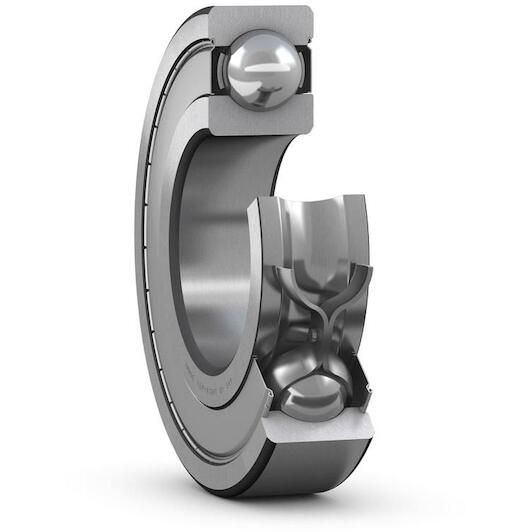

SKF 6319-2Z/C3 single-row groove ball bearing cylindrical 95x200x45 mm

Supplier number: SKF 6319-2Z/C3 | EAN 7316577117144

Recommended Retail Price €715.99

354.40 tax incl.

€292.89 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 2 products in stock.

Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Smooth rotation under heavy loads

Practical benefits

Effective double shielded protection: Metal shields on both sides retain lubricant effectively while keeping out harmful dirt and external contaminants.
Increased radial internal clearance: The C3 clearance allows the 6319-2Z/C3 bearing to expand thermally without causing internal friction or overheating.
High dynamic load capacity: Built from durable steel, it reliably supports demanding combined radial and axial loads in continuous operation.

In a nutshell

The right choise for

Keep your heavy industrial equipment running reliably with the Skf 6319-2Z/C3 deep groove ball bearing. Engineered from durable steel with a 95 mm cylindrical bore, it easily accommodates demanding radial and axial loads in both directions. The dual metal shields (2Z) keep contaminants out while retaining lubricant inside for extended operating life. Thanks to the increased C3 radial internal clearance, the bearing prevents thermal seizure and handles high operational speeds without binding. It is the dependable solution for maintaining electric motors, industrial pumps, and heavy-duty gearboxes.

Product information FAQ

€354.40

In stock - tax incl.

Key features according to our expert

Inner diameter: 95 mm
Width: 45 mm
Number of rows: 1
Sealing (bearing): Sealed on both sides
Material (bearing seal): Metal
Radial clearance: C3
Material (bearing): Steel
Material (cage): Brass (sheet)
Bore type: Cylindrical
High temperature: No
Outer diameter: 200 mm

Product description

Single row deep groove ball bearings with seals or shields are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types. The integral sealing can significantly prolong bearing service life because it keeps lubricant in the bearings and contaminants out.

Integral sealing prolongs bearing service life
Simple, versatile and robust design
Low friction and high-speed capability
Accommodate radial and axial loads in both directions
Require little maintenance

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 95 mm
Width: 45 mm
Number of rows: 1
Sealing (bearing): Sealed on both sides
Material (bearing seal): Metal
Radial clearance: C3
Material (bearing): Steel
Material (cage): Brass (sheet)
Bore type: Cylindrical
High temperature: No
Outer diameter: 200 mm
Relubrication feature: Without
Radial internal clearance: C3
Basic static load rating: 118
Matched arrangement: No
Material, bearing: Bearing steel
Reference speed: 7000
Skf performance class: SKF Explorer
Lubricant: Grease
Sealing type: Non-contact
Cage: Sheet metal
Filling slots: Without
Tolerance class: Normal
Basic dynamic load rating: 159
Locating feature, bearing outer ring: None
Sealing: Shield on both sides
Limiting speed: 3600
Bore diameter: 95
Coating: Without
Outer diameter: 200

Brand SKF
01012068
EAN 7316577117144
Supplier number SKF 6319-2Z/C3

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this deep groove ball bearing?: This bearing has a bore diameter of 95 mm, an outside diameter of 200 mm, and a width of 45 mm.
What does the 2Z designation mean?: The 2Z suffix indicates metal shields on both sides to protect against dirt and debris.
What does the C3 radial internal clearance mean?: C3 clearance is greater than standard internal clearance, making it suitable for high speeds and thermal expansion.
What types of loads can this bearing accommodate?: This single row deep groove ball bearing accommodates both radial and axial loads in both directions.
What bore type does this bearing have?: It features a standard cylindrical bore for direct mounting on a 95 mm shaft.
