skf_6318_zc3

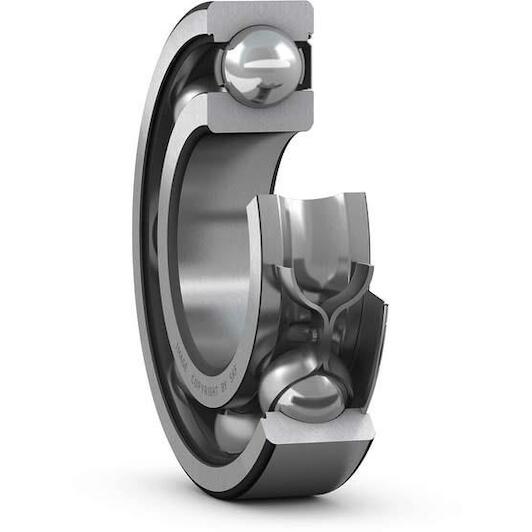

SKF 6318-Z/C3 single-row groove ball bearing cylindrical 90x190x43 mm

Supplier number: SKF 6318-Z/C3 | EAN 07316571367927
Recommended Retail Price €604.83
299.40 tax incl.
€247.44 excl. VAT (incl. all environmental contributions)
On order: delivered from 28/10/2026

  • Delivery by DHL


€299.40
tax incl.

Product information

Key features according to our expert

  • Inner diameter: 90 mm
  • Width: 43 mm
  • Number of rows: 1
  • Sealing (bearing): Sealed on one side
  • Material (bearing seal): Metal
  • Radial clearance: C3
  • Material (bearing): Steel
  • Material (cage): Brass (sheet)
  • Bore type: Cylindrical
  • High temperature: No
  • Outer diameter: 190 mm

Product description

Single row deep groove ball bearings with seals or shields are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types. The integral sealing can significantly prolong bearing service life because it keeps lubricant in the bearings and contaminants out.

  • Integral sealing prolongs bearing service life
  • Simple, versatile and robust design
  • Low friction and high-speed capability
  • Accommodate radial and axial loads in both directions
  • Require little maintenance

Documents

All Features

Inner diameter
90 mm
Width
43 mm
Number of rows
1
Sealing (bearing)
Sealed on one side
Material (bearing seal)
Metal
Radial clearance
C3
Material (bearing)
Steel
Material (cage)
Brass (sheet)
Bore type
Cylindrical
High temperature
No
Outer diameter
190 mm
Relubrication feature
Without
Radial internal clearance
C3
Basic static load rating
108
Matched arrangement
No
Material, bearing
Bearing steel
Reference speed
7500
Skf performance class
SKF Explorer
Lubricant
None
Sealing type
Non-contact
Cage
Sheet metal
Filling slots
Without
Tolerance class
Normal
Basic dynamic load rating
151
Locating feature, bearing outer ring
None
Sealing
Shield on one side
Limiting speed
4800
Bore diameter
90
Coating
Without
Outer diameter
190
  • Brand SKF
  • EAN 07316571367927
  • Supplier number SKF 6318-Z/C3
