What are the exact dimensions of this bearing?

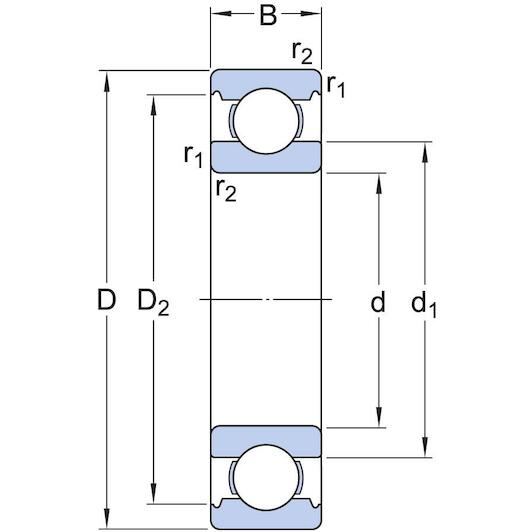

This deep groove ball bearing has an inside diameter of 90 mm, an outside diameter of 190 mm, and a width of 43 mm.

What does the C3 clearance designation mean on the SKF 6318/C3?

C3 indicates greater radial internal clearance than normal, which is ideal for higher operating temperatures or speeds.

Is this ball bearing sealed?

No, this is an open deep groove ball bearing without seals, requiring external lubrication.

What types of loads can this bearing accommodate?

This single row deep groove ball bearing accommodates both radial and axial loads in both directions.

What bore type does this bearing have?

This model features a cylindrical bore with a 90 mm diameter for standard shaft mounting.

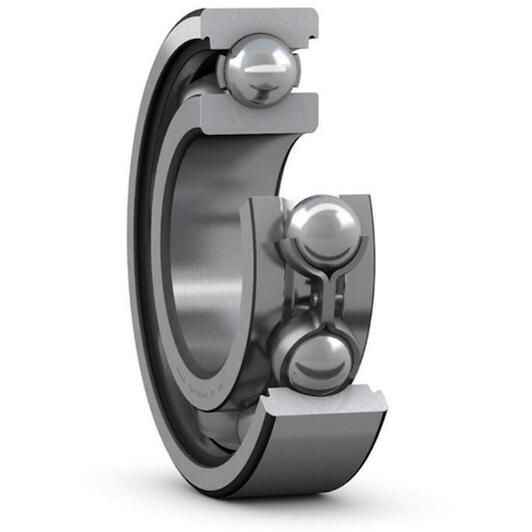

SKF 6318/C3 single-row groove ball bearing cylindrical 90x190x43 mm

Supplier number: SKF 6318/C3 | EAN 7316571367934

Recommended Retail Price €504.04

249.40 tax incl.

€206.12 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 3 products in stock.

Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Smooth rotation under heavy loads

Practical benefits

Proven Skf 6318/C3 bearing: You reliably accommodate heavy radial and axial loads simultaneously in both directions of rotation.
Built for thermal expansion: The increased C3 radial internal clearance ensures you maintain smooth operation even under rising operational temperatures.
Low friction and vibration: Its precision steel construction delivers low running friction, helping you reduce machine downtime and maintenance demands.

Product information FAQ

€249.40

In stock - tax incl.

Key features according to our expert

Inner diameter: 90 mm
Width: 43 mm
Number of rows: 1
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Radial clearance: C3
Material (bearing): Steel
Material (cage): Brass (sheet)
Bore type: Cylindrical
High temperature: No
Outer diameter: 190 mm

Product description

Single row deep groove ball bearings are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types.

Simple, versatile and robust design
Low friction
High-speed capability
Accommodate radial and axial loads in both directions
Require little maintenance

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 90 mm
Width: 43 mm
Number of rows: 1
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Radial clearance: C3
Material (bearing): Steel
Material (cage): Brass (sheet)
Bore type: Cylindrical
High temperature: No
Outer diameter: 190 mm
Matched arrangement: No
Tolerance class: Normal
Radial internal clearance: C3
Basic static load rating: 108
Material, bearing: Bearing steel
Relubrication feature: Without
Reference speed: 7500
Skf performance class: SKF Explorer
Lubricant: None
Cage: Sheet metal
Locating feature, bearing outer ring: None
Filling slots: Without
Coating: Without
Sealing: Without
Limiting speed: 4800
Bore diameter: 90
Basic dynamic load rating: 151
Outer diameter: 190

Brand SKF
01011517
EAN 7316571367934
Supplier number SKF 6318/C3

Frequently asked questions about this product

Answered by specialists

What are the exact dimensions of this bearing?: This deep groove ball bearing has an inside diameter of 90 mm, an outside diameter of 190 mm, and a width of 43 mm.
What does the C3 clearance designation mean on the SKF 6318/C3?: C3 indicates greater radial internal clearance than normal, which is ideal for higher operating temperatures or speeds.
Is this ball bearing sealed?: No, this is an open deep groove ball bearing without seals, requiring external lubrication.
What types of loads can this bearing accommodate?: This single row deep groove ball bearing accommodates both radial and axial loads in both directions.
What bore type does this bearing have?: This model features a cylindrical bore with a 90 mm diameter for standard shaft mounting.
