skf_6317c4
SKF

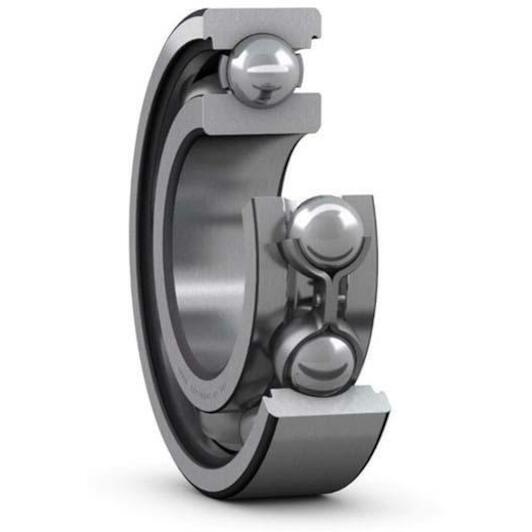

SKF 6317/C4 single-row groove ball bearing cylindrical 85x180x41 mm

Recommended Retail Price €479.39
237.20 tax incl.
€196.03 excl. VAT (incl. all environmental contributions)
On order: delivered from 26/05/2026
each

  • Delivery by DHL

Product description

Single row deep groove ball bearings are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types.

  • Simple, versatile and robust design
  • Low friction
  • High-speed capability
  • Accommodate radial and axial loads in both directions
  • Require little maintenance
Key features according to our expert
  • Inner diameter: 85 mm
  • Width: 41 mm
  • Number of rows: 1
  • Seal (bearing): Without seal
  • Material (bearing seal): Not applicable
  • Radial clearance: C4
  • Material (bearing): Steel
  • Material (cage): Brass (sheet)
  • Bore type: Cylindrical
  • High temperature: No
  • Outer diameter: 180 mm
Specifications / All features
  • Brand: SKF
  • EAN: 07316577297945
  • Supplier number: SKF 6317/C4
Inner diameter
85 mm
Width
41 mm
Number of rows
1
Seal (bearing)
Without seal
Material (bearing seal)
Not applicable
Radial clearance
C4
Material (bearing)
Steel
Material (cage)
Brass (sheet)
Bore type
Cylindrical
High temperature
No
Outer diameter
180 mm
Matched arrangement
No
Tolerance class
Normal
Radial internal clearance
C4
Basic static load rating
96.5
Material, bearing
Bearing steel
Relubrication feature
Without
Reference speed
8000
Skf performance class
SKF Explorer
Lubricant
None
Cage
Sheet metal
Locating feature, bearing outer ring
None
Filling slots
Without
Coating
Without
Sealing
Without
Limiting speed
5000
Bore diameter
85
Basic dynamic load rating
140
Outside diameter
180
