SKF

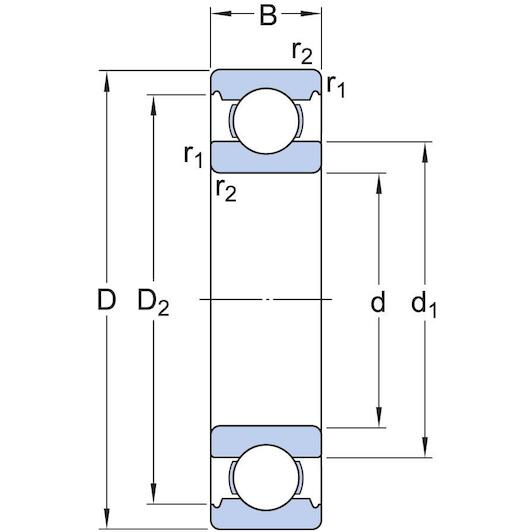

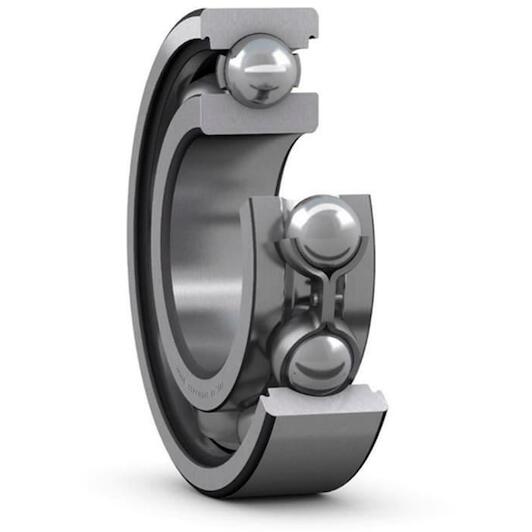

SKF 6316/C4 single-row groove ball bearing cylindrical 80x170x39 mm

Recommended Retail Price €388.97
192.40 tax incl.
€159.01 excl. VAT (incl. all environmental contributions)
On order: delivered from 21/05/2026
each

  • Delivery by DHL

Product description:

  • Deep groove ball bearings are particularly versatile
  • They are simple in design, not removable, suitable for high to very high speeds and are very robust in operation, requiring little maintenance
  • Deep raceways and close contact between raceways and balls make deep groove ball bearings suitable not only for radial loads, but also for axial loads in both directions, even at high speeds
Key features according to our expert
  • Inner diameter: 80 mm
  • Width: 39 mm
  • Number of rows: 1
  • Seal (bearing): Without seal
  • Material (bearing seal): Not applicable
  • Radial clearance: C4
  • Material (bearing): Steel
  • Material (cage): Brass (sheet)
  • Bore type: Cylindrical
  • High temperature: No
  • Outer diameter: 170 mm
Specifications / All features
  • Brand: SKF
  • EAN: 07316576619618
  • Supplier number: SKF 6316/C4
Inner diameter
80 mm
Width
39 mm
Number of rows
1
Seal (bearing)
Without seal
Material (bearing seal)
Not applicable
Radial clearance
C4
Material (bearing)
Steel
Material (cage)
Brass (sheet)
Bore type
Cylindrical
High temperature
No
Outer diameter
170 mm
Matched arrangement
No
Tolerance class
Normal
Radial internal clearance
C4
Basic static load rating
86.5
Material, bearing
Bearing steel
Relubrication feature
Without
Reference speed
8500
Skf performance class
SKF Explorer
Lubricant
None
Cage
Sheet metal
Locating feature, bearing outer ring
None
Filling slots
Without
Coating
Without
Sealing
Without
Limiting speed
5300
Bore diameter
80
Basic dynamic load rating
130
Outside diameter
170
