SKF

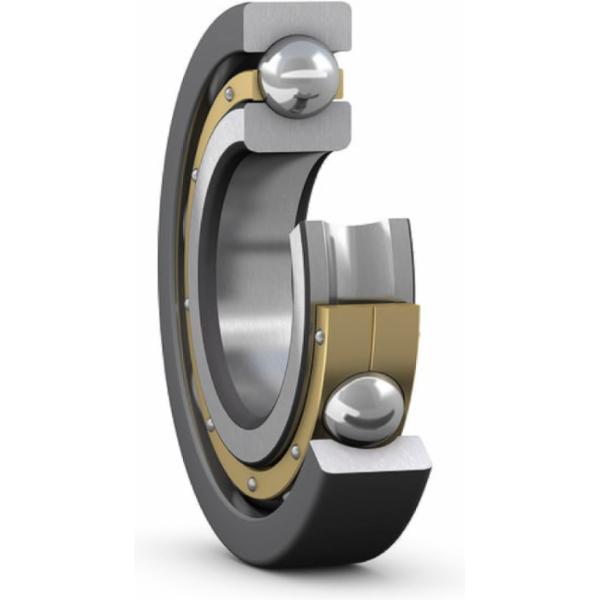

SKF 6315 M/C4HVL0241 single-row groove ball bearing cylindrical 75x160x37 mm

This article is not available

Product description:

  • Deep groove ball bearings are particularly versatile
  • They are simple in design, not removable, suitable for high to very high speeds and are very robust in operation, requiring little maintenance
  • Deep raceways and close contact between raceways and balls make deep groove ball bearings suitable not only for radial loads, but also for axial loads in both directions, even at high speeds
Key features according to our expert
  • Inner diameter: 75 mm
  • Width: 37 mm
  • Number of rows: 1
  • Seal (bearing): Without seal
  • Material (bearing seal): Not applicable
  • Radial clearance: C4H
  • Material (bearing): Steel
  • Material (cage): Brass (solid)
  • Bore type: Cylindrical
  • High temperature: No
  • Outer diameter: 160 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316571277691
  • Supplier number: SKF 6315 M/C4HVL0241
Inner diameter
75 mm
Width
37 mm
Number of rows
1
Seal (bearing)
Without seal
Material (bearing seal)
Not applicable
Radial clearance
C4H
Material (bearing)
Steel
Material (cage)
Brass (solid)
Bore type
Cylindrical
High temperature
No
Outer diameter
160 mm
Matched arrangement
No
Tolerance class
Normal
Radial internal clearance
C4H
Basic static load rating
76.5 kN
Material, bearing
Bearing steel
Relubrication feature
Without
Reference speed
9,000 r/min
Lubricant
None
Cage
Machined metal
Locating feature, bearing outer ring
None
Filling slots
Without
Coating
Insulation coating on outer ring
Sealing
Without
Limiting speed
8,000 r/min
Bore diameter
75 mm
Basic dynamic load rating
119 kN
Outside diameter
160 mm
