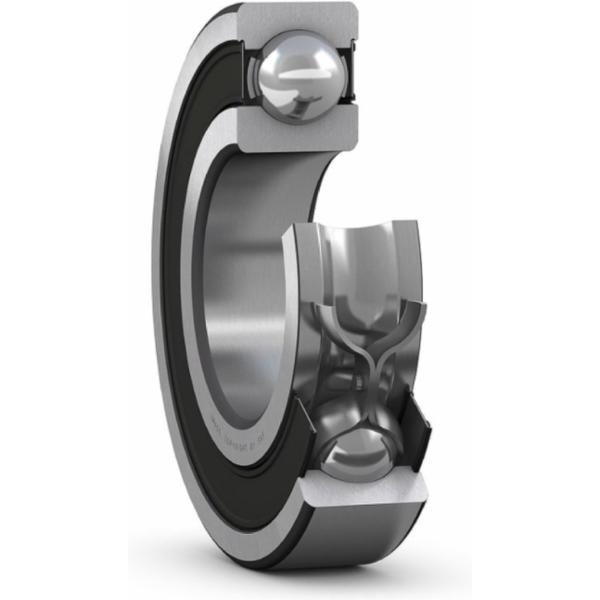

Product description: Deep groove ball bearings are particularly versatile They are simple in design, not removable, suitable for high to very high speeds and are very robust in operation, requiring little maintenance Deep raceways and close contact between raceways and balls make deep groove ball bearings suitable not only for radial loads, but also for axial loads in both directions, even at high speeds
Key features according to our expert
Inner diameter: 75 mm
Width: 37 mm
Number of rows: 1
Seal (bearing): Double-sided sealed
Material (bearing seal): Rubber
Radial clearance: C3
Material (bearing): Steel
Material (cage): Brass (sheet)
Bore type: Cylindrical
High temperature: No
Outer diameter: 160 mm
Specifications / All features
Brand:
SKF
01015163
EAN:
7316571753546
Supplier number:
SKF 6315-2RS1/C3WT
Inner diameter
75 mm
Width
37 mm
Number of rows
1
Seal (bearing)
Double-sided sealed
Material (bearing seal)
Rubber
Radial clearance
C3
Material (bearing)
Steel
Material (cage)
Brass (sheet)
Bore type
Cylindrical
High temperature
No
Outer diameter
160 mm
Relubrication feature
Without
Radial internal clearance
C3
Basic static load rating
76.5 kN
Matched arrangement
No
Material, bearing
Bearing steel
Skf performance class
SKF Explorer
Lubricant
Grease
Sealing type
Contact
Cage
Sheet metal
Filling slots
Without
Tolerance class
Normal
Basic dynamic load rating
119 kN
Locating feature, bearing outer ring
None
Sealing
Seal on both sides
Limiting speed
2,800 r/min
Bore diameter
75 mm
Coating
Without
Outside diameter
160 mm
