skf_6314_2zc3gjn
SKF

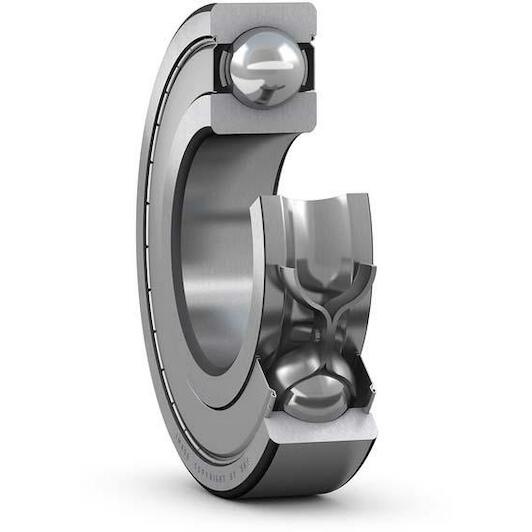

SKF 6314-2Z/C3GJN groove ball bearing with protective plates on both sides 70 mm

Recommended Retail Price €304.70
150.80 tax incl.
€124.63 excl. VAT (incl. all environmental contributions)
On order: delivered from 26/05/2026
each

  • Delivery by DHL

Product description

Single row deep groove ball bearings with seals or shields are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types. The integral sealing can significantly prolong bearing service life because it keeps lubricant in the bearings and contaminants out.

  • Integral sealing prolongs bearing service life
  • Simple, versatile and robust design
  • Low friction and high-speed capability
  • Accommodate radial and axial loads in both directions
  • Require little maintenance
Key features according to our expert
  • Inner diameter: 70
Specifications / All features
  • Brand: SKF
  • EAN: 07316571555737
  • Supplier number: SKF 6314-2Z/C3GJN
Inner diameter
70
Filling slots
Without
Material, bearing
Bearing steel
Cage
Sheet metal
Sealing type
Non-contact
Lubricant
Grease
Skf performance class
SKF Explorer
Reference speed
9500
Relubrication feature
Without
Matched arrangement
No
Basic static load rating
68
Radial internal clearance
C3
Tolerance class
Normal
Locating feature, bearing outer ring
None
Sealing
Shield on both sides
Limiting speed
5000
Bore diameter
70
Number of rows
1
Basic dynamic load rating
111
Coating
Without
Width
35
Outside diameter
150
Bore type
Cylindrical
