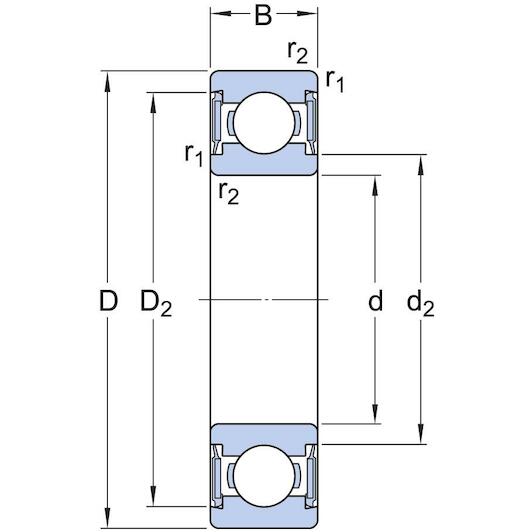

What are the dimensions of this SKF 6214-2RS1 ball bearing?

This bearing has an inside diameter of 70 mm, an outside diameter of 125 mm, and a width of 24 mm.

What does the 2RS1 designation indicate on this bearing?

It indicates that the bearing is fitted on both sides with a contact rubber seal against dirt and moisture.

Does this bearing require greasing before installation?

No, this deep groove ball bearing is pre-lubricated with grease at the factory and is maintenance-free.

What type of bore and radial clearance does this bearing have?

It features a cylindrical bore and standard normal radial internal clearance (CN).

What loads can this single-row deep groove ball bearing handle?

It accommodates both radial and axial loads acting in either direction.

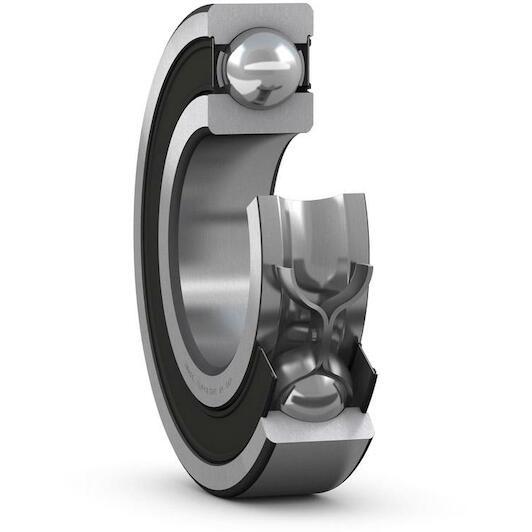

SKF 6214-2RS1 single-row groove ball bearing cylindrical 70x125x24 mm

Supplier number: SKF 6214-2RS1 | EAN 7316570615043

Recommended Retail Price €163.97

80.95 tax incl.

€66.90 excl. VAT (incl. all environmental contributions)

On stock - immediately available

Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Smooth rotation with 6214-2RS1

Practical benefits

Effective protection against contaminants: The double-sided rubber seals keep dirt and moisture out, ensuring you maintain smooth and reliable operation.
High radial load capacity: Built from robust steel, it allows you to handle substantial radial loads across demanding applications.
Maintenance-free and stable performance: Pre-filled lubricant minimizes friction, so you experience long service life without recurring relubrication tasks.

In a nutshell

The right choise for

Keep your machinery running smoothly and reliably with the Skf 6214-2RS1 deep groove ball bearing. Engineered from durable steel with a 70 mm bore, 125 mm outside diameter, and 24 mm width, this single-row bearing effectively accommodates both radial and axial loads in either direction. The dual rubber contact seals keep out dust and moisture while retaining the factory-applied grease lubrication. This gives you a truly maintenance-free operation with no relubrication required, making it an ideal choice for continuous duty in electric motors, gearboxes, pumps, and conveyor systems.

Product information FAQ

€80.95

In stock - tax incl.

Key features according to our expert

Inner diameter: 70 mm
Width: 24 mm
Number of rows: 1
Sealing (bearing): Sealed on both sides
Material (bearing seal): Rubber
Radial clearance: CN (Normal)
Material (bearing): Steel
Material (cage): Brass (sheet)
Bore type: Cylindrical
High temperature: No
Outer diameter: 125 mm

Product description

Single row deep groove ball bearings with seals or shields are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types. The integral sealing can significantly prolong bearing service life because it keeps lubricant in the bearings and contaminants out.

Integral sealing prolongs bearing service life
Simple, versatile and robust design
Low friction and high-speed capability
Accommodate radial and axial loads in both directions
Require little maintenance

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 70 mm
Width: 24 mm
Number of rows: 1
Sealing (bearing): Sealed on both sides
Material (bearing seal): Rubber
Radial clearance: CN (Normal)
Material (bearing): Steel
Material (cage): Brass (sheet)
Bore type: Cylindrical
High temperature: No
Outer diameter: 125 mm
Matched arrangement: No
Tolerance class: Normal
Radial internal clearance: CN
Basic static load rating: 45
Material, bearing: Bearing steel
Relubrication feature: Without
Skf performance class: SKF Explorer
Lubricant: Grease
Sealing type: Contact
Cage: Sheet metal
Locating feature, bearing outer ring: None
Filling slots: Without
Coating: Without
Sealing: Seal on both sides
Limiting speed: 3400
Bore diameter: 70
Basic dynamic load rating: 63.7
Outer diameter: 125

Brand SKF
01010252
EAN 7316570615043
Supplier number SKF 6214-2RS1

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this SKF 6214-2RS1 ball bearing?: This bearing has an inside diameter of 70 mm, an outside diameter of 125 mm, and a width of 24 mm.
What does the 2RS1 designation indicate on this bearing?: It indicates that the bearing is fitted on both sides with a contact rubber seal against dirt and moisture.
Does this bearing require greasing before installation?: No, this deep groove ball bearing is pre-lubricated with grease at the factory and is maintenance-free.
What type of bore and radial clearance does this bearing have?: It features a cylindrical bore and standard normal radial internal clearance (CN).
What loads can this single-row deep groove ball bearing handle?: It accommodates both radial and axial loads acting in either direction.
