What are the dimensions of this deep groove ball bearing?

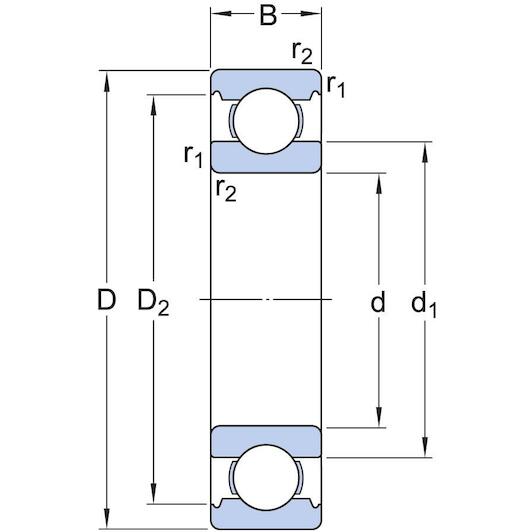

The bearing has a 65 mm bore, a 120 mm outer diameter, and a width of 23 mm.

What does the C3 clearance mean on the SKF 6213/C3?

C3 indicates a greater-than-normal radial internal clearance, ideal for higher speeds and thermal expansion.

Does this bearing come with built-in seals or shields?

No, this is an open bearing without seals or shields, allowing external lubrication.

What loads can the SKF 6213/C3 accommodate?

This single-row deep groove ball bearing accommodates radial loads as well as axial loads in both directions.

What material is the cage made of?

The cage of this SKF bearing is made of sheet metal steel.

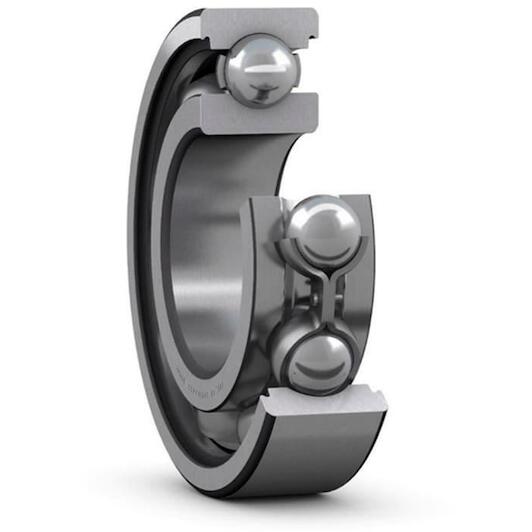

SKF 6213/C3 single-row groove ball bearing cylindrical 65x120x23 mm

Supplier number: SKF 6213/C3 | EAN 7316571369662

Recommended Retail Price €108.36

53.60 tax incl.

€44.30 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 5 products in stock.

Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Smooth rotation with Skf engineering

Practical benefits

Increased C3 radial clearance: You accommodate thermal expansion during continuous operation thanks to the internal C3 clearance.
Efficient high speed performance: The open deep groove design reduces friction so you achieve high rotational speeds effortlessly.
Versatile bidirectional load support: You reliably handle combined radial and axial forces across both directions.

In a nutshell

The right choise for

With the Skf 6213/C3 single-row deep groove ball bearing, you ensure smooth, low-friction rotation in demanding industrial machinery. Designed with an increased C3 radial internal clearance, it easily accommodates thermal expansion during high-speed operation to prevent seizure. Featuring a 65 mm cylindrical bore, a 120 mm outer diameter, and a 23 mm width, this durable steel bearing reliably handles combined radial and axial loads in both directions. Its open design without seals allows direct external lubrication in gearboxes, pumps, and electric motors, keeping your rotating equipment running efficiently and trouble-free.

Product information FAQ

€53.60

In stock - tax incl.

Key features according to our expert

Inner diameter: 65 mm
Width: 23 mm
Number of rows: 1
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Radial clearance: C3
Material (bearing): Steel
Material (cage): Brass (sheet)
Bore type: Cylindrical
High temperature: No
Outer diameter: 120 mm

Product description

Single row deep groove ball bearings are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types.

Simple, versatile and robust design
Low friction
High-speed capability
Accommodate radial and axial loads in both directions
Require little maintenance

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 65 mm
Width: 23 mm
Number of rows: 1
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Radial clearance: C3
Material (bearing): Steel
Material (cage): Brass (sheet)
Bore type: Cylindrical
High temperature: No
Outer diameter: 120 mm
Matched arrangement: No
Tolerance class: Normal
Radial internal clearance: C3
Basic static load rating: 40.5
Material, bearing: Bearing steel
Relubrication feature: Without
Reference speed: 12000
Skf performance class: SKF Explorer
Lubricant: None
Cage: Sheet metal
Locating feature, bearing outer ring: None
Filling slots: Without
Coating: Without
Sealing: Without
Limiting speed: 7500
Bore diameter: 65
Basic dynamic load rating: 58.5
Outer diameter: 120

Brand SKF
01011434
EAN 7316571369662
Supplier number SKF 6213/C3

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this deep groove ball bearing?: The bearing has a 65 mm bore, a 120 mm outer diameter, and a width of 23 mm.
What does the C3 clearance mean on the SKF 6213/C3?: C3 indicates a greater-than-normal radial internal clearance, ideal for higher speeds and thermal expansion.
Does this bearing come with built-in seals or shields?: No, this is an open bearing without seals or shields, allowing external lubrication.
What loads can the SKF 6213/C3 accommodate?: This single-row deep groove ball bearing accommodates radial loads as well as axial loads in both directions.
What material is the cage made of?: The cage of this SKF bearing is made of sheet metal steel.
