What are the dimensions of this SKF ball bearing?

The deep groove ball bearing has an inside diameter of 65 mm, an outside diameter of 120 mm, and a width of 23 mm.

What does the 2Z designation mean on this bearing?

It indicates that the bearing has metal shields on both sides to retain grease and keep dust out.

What is the radial internal clearance of this bearing?

This model features standard normal radial internal clearance (CN).

What type of bore does this bearing have?

It has a standard cylindrical bore designed for a 65 mm shaft.

What type of loads can this deep groove ball bearing handle?

It accommodates radial loads and light axial loads in both directions.

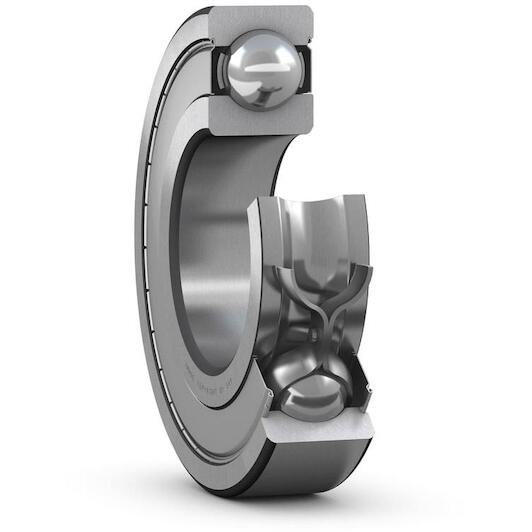

SKF 6213-2Z single-row groove ball bearing cylindrical 65x120x23 mm

Supplier number: SKF 6213-2Z | EAN 7316570464719

Recommended Retail Price €124.62

61.60 tax incl.

€50.91 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 6 products in stock.

Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Smooth rotation with Skf engineering

Practical benefits

Dual metal shield protection: The integrated metal shields keep lubricant sealed inside while effectively preventing dirt and contaminants from entering.
Low friction smooth running: Optimized internal geometry ensures you achieve high rotational speeds with minimal noise and reduced vibration levels.
Combined load handling capacity: You can easily support both radial and axial forces in either direction with minimal maintenance needs.

In a nutshell

The right choise for

With the Skf 6213-2Z single row deep groove ball bearing, you ensure smooth and dependable rotation across heavy-duty industrial machinery. Designed with a 65 mm cylindrical bore, a 120 mm outside diameter, and a 23 mm width, this steel bearing is an ideal solution for electric motors, gearboxes, and pumps. Dual metal shields keep lubricant securely sealed inside while protecting internal components from dust and debris. Operating with standard cn clearance, it minimizes friction and vibration while easily supporting both radial and axial loads in either direction.

Product information FAQ

€61.60

In stock - tax incl.

Key features according to our expert

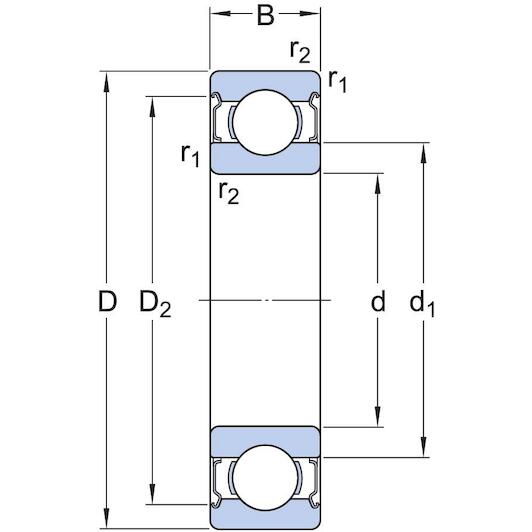

Inner diameter: 65 mm
Width: 23 mm
Number of rows: 1
Sealing (bearing): Sealed on both sides
Material (bearing seal): Metal
Radial clearance: CN (Normal)
Material (bearing): Steel
Material (cage): Brass (sheet)
Bore type: Cylindrical
High temperature: No
Outer diameter: 120 mm

Product description

Single row deep groove ball bearings with seals or shields are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types. The integral sealing can significantly prolong bearing service life because it keeps lubricant in the bearings and contaminants out.

Integral sealing prolongs bearing service life
Simple, versatile and robust design
Low friction and high-speed capability
Accommodate radial and axial loads in both directions
Require little maintenance

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 65 mm
Width: 23 mm
Number of rows: 1
Sealing (bearing): Sealed on both sides
Material (bearing seal): Metal
Radial clearance: CN (Normal)
Material (bearing): Steel
Material (cage): Brass (sheet)
Bore type: Cylindrical
High temperature: No
Outer diameter: 120 mm
Relubrication feature: Without
Radial internal clearance: CN
Basic static load rating: 40.5
Matched arrangement: No
Material, bearing: Bearing steel
Reference speed: 12000
Skf performance class: SKF Explorer
Lubricant: Grease
Sealing type: Non-contact
Cage: Sheet metal
Filling slots: Without
Tolerance class: Normal
Basic dynamic load rating: 58.5
Locating feature, bearing outer ring: None
Sealing: Shield on both sides
Limiting speed: 6000
Bore diameter: 65
Coating: Without
Outer diameter: 120

Brand SKF
01010249
EAN 7316570464719
Supplier number SKF 6213-2Z

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this SKF ball bearing?: The deep groove ball bearing has an inside diameter of 65 mm, an outside diameter of 120 mm, and a width of 23 mm.
What does the 2Z designation mean on this bearing?: It indicates that the bearing has metal shields on both sides to retain grease and keep dust out.
What is the radial internal clearance of this bearing?: This model features standard normal radial internal clearance (CN).
What type of bore does this bearing have?: It has a standard cylindrical bore designed for a 65 mm shaft.
What type of loads can this deep groove ball bearing handle?: It accommodates radial loads and light axial loads in both directions.
