skf_6209_2zc4

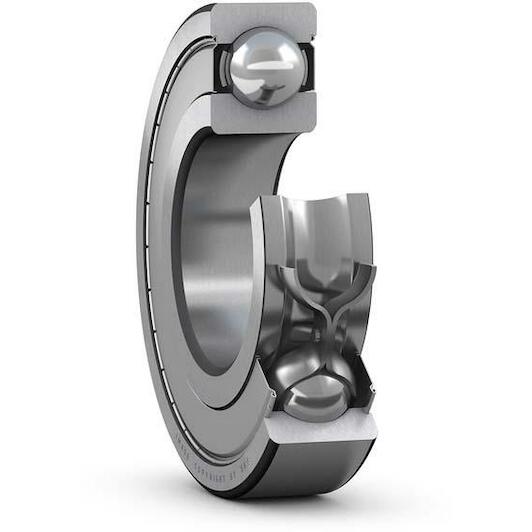

SKF 6209-2Z/C4 groove ball bearing with protective plates on both sides 45 mm

Supplier number: SKF 6209-2Z/C4 | EAN 07316571451572
Recommended Retail Price €58.95
28.95 tax incl.
€23.92 excl. VAT (incl. all environmental contributions)
On order: delivered from 29/10/2026

  • Delivery by DHL


€28.95
tax incl.

Product information

Key features according to our expert

  • Inner diameter: 45 mm
  • Outer diameter: 85 mm
  • Width: 19 mm

Product description

Single row deep groove ball bearings with seals or shields are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types. The integral sealing can significantly prolong bearing service life because it keeps lubricant in the bearings and contaminants out.

  • Integral sealing prolongs bearing service life
  • Simple, versatile and robust design
  • Low friction and high-speed capability
  • Accommodate radial and axial loads in both directions
  • Require little maintenance

All Features

Inner diameter
45 mm
Outer diameter
85 mm
Width
19 mm
Material, bearing
Bearing steel
Cage
Sheet metal
Sealing type
Non-contact
Lubricant
Grease
Skf performance class
SKF Explorer
Reference speed
17000
Relubrication feature
Without
Matched arrangement
No
Basic static load rating
21.6
Radial internal clearance
C4
Tolerance class
Class P6 (P6)
Filling slots
Without
Sealing
Shield on both sides
Locating feature, bearing outer ring
None
Limiting speed
8500
Bore diameter
45
Number of rows
1
Basic dynamic load rating
35.1
Coating
Without
Outer diameter
85
Bore type
Cylindrical
  • Brand SKF
  • EAN 07316571451572
  • Supplier number SKF 6209-2Z/C4
