SKF

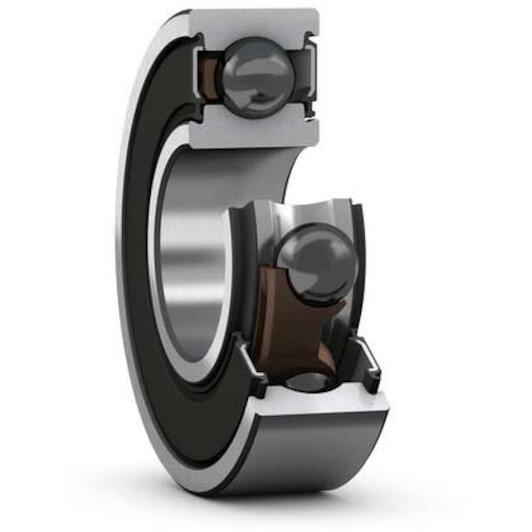

SKF 6205-2RSLTN9/HC5C3WT hybrid ceramic single-row groove ball bearing with low-friction seal on both sides 25 mm

Recommended Retail Price €137.98
68.20 tax incl.
€56.36 excl. VAT (incl. all environmental contributions)
On order: delivered from 26/05/2026
each

  • Delivery by DHL

Product description

Hybrid ceramic single row deep groove ball bearings with low-friction seals on both sides have rings made of bearing steel and rolling elements made of bearing grade silicon nitride, which make the bearings electrically insulating. The low-friction seals provide better sealing effectiveness than shields and non-contact seals, thus providing significantly prolonged bearing service life, yet they can still operate at the same speeds as shields. The ceramic rolling elements not only provide protection from electric current damage but also, when compared to same-sized bearings with steel rolling elements, provide enhanced bearing performance, extended bearing service life, higher speed capability, high wear-resistance, high bearing stiffness, reduced risk of smearing and false brinelling and less sensitivity to temperature gradients, making them suitable for use in dificult conditions and contaminated environments.

  • Protected against electric current damage
  • Especially suited for use in difficult conditions and contaminated environments
  • Typical benefits of single row deep groove ball bearings
Key features according to our expert
  • Inner diameter: 25 mm
  • Width: 15 mm
  • Number of rows: 1
  • Seal (bearing): Double-sided sealed
  • Radial clearance: C3
  • Material (bearing): Hybrid ceramic
  • Material (cage): Plastic
  • Bore type: Cylindrical
  • High temperature: No
  • Outer diameter: 52 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316572024690
  • Supplier number: SKF 6205-2RSLTN9/HC5C3WT
Inner diameter
25 mm
Width
15 mm
Number of rows
1
Seal (bearing)
Double-sided sealed
Radial clearance
C3
Material (bearing)
Hybrid ceramic
Material (cage)
Plastic
Bore type
Cylindrical
High temperature
No
Outer diameter
52 mm
Matched arrangement
No
Tolerance class
Normal
Radial internal clearance
C3
Basic static load rating
7.8
Cage
Non-metallic
Relubrication feature
Without
Reference speed
32000
Lubricant
Grease
Sealing type
Low-friction
Locating feature, bearing outer ring
None
Material, bearing
Hybrid (ceramic balls)
Filling slots
Without
Basic dynamic load rating
14
Sealing
Seal on both sides
Limiting speed
15000
Bore diameter
25
Coating
Without
Outside diameter
52
