What are the dimensions of this deep groove ball bearing?

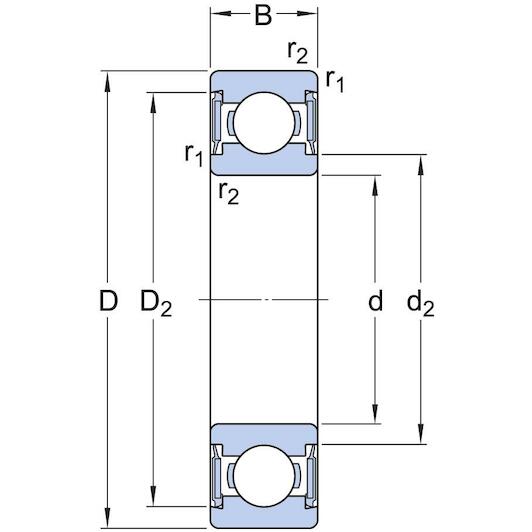

The bearing has an inside diameter of 55 mm, an outside diameter of 80 mm, and a width of 13 mm.

What type of seal does the SKF 61911-2RS1 bearing have?

It features rubber contact seals on both sides (2RS1) to keep out dust and moisture.

What type of bore does this bearing have?

This bearing has a standard cylindrical bore designed for a 55 mm straight shaft.

What radial internal clearance does this bearing have?

This bearing features standard radial internal clearance (CN/Normal).

Is this SKF bearing suitable for high-temperature applications?

No, this standard bearing is not rated for high-temperature environments.

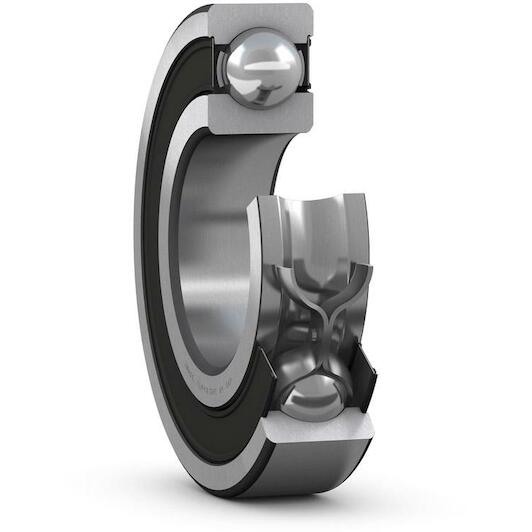

SKF 61911-2RS1 single-row groove ball bearing cylindrical 55x80x13 mm

Supplier number: SKF 61911-2RS1 | EAN 7316571026855

Recommended Retail Price €232.85

115.20 tax incl.

€95.21 excl. VAT (incl. all environmental contributions)

On stock - immediately available

Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Smooth rotation with Skf 61911-2RS1

Practical benefits

Reliable sealing against contaminants: The double-sided rubber seals keep lubricant inside and block dirt, ensuring you achieve a longer operating life.
Handles versatile load directions: You can accommodate both radial and axial loads in either direction with this robust single-row design.
Easy and precise fitting: Thanks to the cylindrical 55 mm bore, you install this low-friction bearing quickly and accurately on your shaft.

In a nutshell

The right choise for

With the Skf 61911-2RS1 deep groove ball bearing, you ensure smooth and dependable rotation across industrial machinery, electric motors, and drive systems. Thanks to dual contact rubber seals on both sides, lubricating grease stays securely contained inside while dust, dirt, and moisture are locked out, eliminating the need for routine re-greasing. The single-row steel design effortlessly handles radial loads as well as light axial loads in both directions. Featuring a 55 mm cylindrical bore, an 80 mm outer diameter, and a slim 13 mm width, this bearing mounts quickly and accurately onto straight shafts for reliable, low-maintenance performance.

Product information FAQ

€115.20

In stock - tax incl.

Key features according to our expert

Inner diameter: 55 mm
Width: 13 mm
Number of rows: 1
Sealing (bearing): Sealed on both sides
Material (bearing seal): Rubber
Radial clearance: CN (Normal)
Material (bearing): Steel
Material (cage): Brass (sheet)
Bore type: Cylindrical
High temperature: No
Outer diameter: 80 mm

Product description

Single row deep groove ball bearings with seals or shields are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types. The integral sealing can significantly prolong bearing service life because it keeps lubricant in the bearings and contaminants out.

Integral sealing prolongs bearing service life
Simple, versatile and robust design
Low friction and high-speed capability
Accommodate radial and axial loads in both directions
Require little maintenance

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 55 mm
Width: 13 mm
Number of rows: 1
Sealing (bearing): Sealed on both sides
Material (bearing seal): Rubber
Radial clearance: CN (Normal)
Material (bearing): Steel
Material (cage): Brass (sheet)
Bore type: Cylindrical
High temperature: No
Outer diameter: 80 mm
Matched arrangement: No
Tolerance class: Normal
Radial internal clearance: CN
Basic static load rating: 12.2
Material, bearing: Bearing steel
Relubrication feature: Without
Lubricant: Grease
Sealing type: Contact
Cage: Sheet metal
Locating feature, bearing outer ring: None
Filling slots: Without
Coating: Without
Sealing: Seal on both sides
Limiting speed: 5000
Bore diameter: 55
Basic dynamic load rating: 16.5
Outer diameter: 80

Brand SKF
01011695
EAN 7316571026855
Supplier number SKF 61911-2RS1

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this deep groove ball bearing?: The bearing has an inside diameter of 55 mm, an outside diameter of 80 mm, and a width of 13 mm.
What type of seal does the SKF 61911-2RS1 bearing have?: It features rubber contact seals on both sides (2RS1) to keep out dust and moisture.
What type of bore does this bearing have?: This bearing has a standard cylindrical bore designed for a 55 mm straight shaft.
What radial internal clearance does this bearing have?: This bearing features standard radial internal clearance (CN/Normal).
Is this SKF bearing suitable for high-temperature applications?: No, this standard bearing is not rated for high-temperature environments.
