What are the dimensions of this SKF ball bearing?

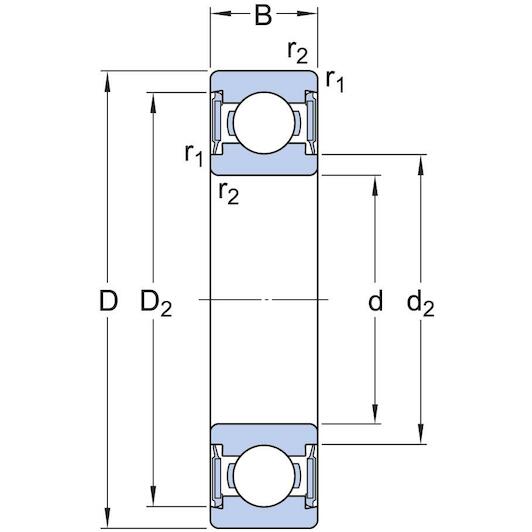

It features a 50 mm bore diameter, a 72 mm outer diameter, and a 12 mm width with a cylindrical bore.

What does the 2RS1 designation mean?

It indicates that the bearing has rubber contact seals on both sides to keep out dirt and moisture.

Does this bearing require greasing prior to installation?

No, it is pre-lubricated at the factory and ready to be mounted directly.

What radial internal clearance does the SKF 61910-2RS1 have?

This bearing features a standard radial internal clearance designated as CN.

Is this deep groove ball bearing suitable for high temperatures?

No, this standard variant is not designed for high-temperature applications.

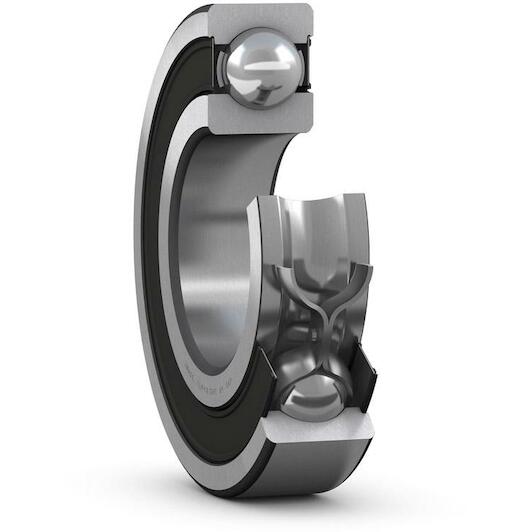

SKF 61910-2RS1 single-row groove ball bearing cylindrical 50x72x12 mm

Supplier number: SKF 61910-2RS1 | EAN 7316577094568

Recommended Retail Price €193.88

95.80 tax incl.

€79.17 excl. VAT (incl. all environmental contributions)

On stock - immediately available

Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Smooth rotation with Skf

Practical benefits

Effective double contact seals: Built-in rubber seals on both sides retain lubrication while keeping dust and moisture out, extending your equipment service life.
Handles versatile load directions: The deep groove geometry accommodates both radial and axial forces in both directions, giving you smooth mechanical operation.
Compact thin section dimensions: Featuring a 50 mm cylindrical bore and a slim 50X72X12 mm profile, you fit this bearing easily into space-restricted assemblies.

In a nutshell

The right choise for

Keep your rotating machinery running smoothly and reliably with the Skf 61910-2RS1 single row deep groove ball bearing. Designed with compact 50X72X12 mm dimensions and a 50 mm cylindrical bore, this steel bearing fits effortlessly into tight installation spaces, making it ideal for electric motors and shaft assemblies. Built-in rubber contact seals on both sides keep dust, dirt, and moisture out while retaining lubricant. Because it comes pre-lubricated from the factory, you can install it immediately with zero maintenance. It reliably handles both radial and axial loads, ensuring stable operation across your equipment.

Product information FAQ

€95.80

In stock - tax incl.

Key features according to our expert

Inner diameter: 50 mm
Width: 12 mm
Number of rows: 1
Sealing (bearing): Sealed on both sides
Material (bearing seal): Rubber
Radial clearance: CN (Normal)
Material (bearing): Steel
Material (cage): Brass (sheet)
Bore type: Cylindrical
High temperature: No
Outer diameter: 72 mm

Product description

Single row deep groove ball bearings with seals or shields are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types. The integral sealing can significantly prolong bearing service life because it keeps lubricant in the bearings and contaminants out.

Integral sealing prolongs bearing service life
Simple, versatile and robust design
Low friction and high-speed capability
Accommodate radial and axial loads in both directions
Require little maintenance

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 50 mm
Width: 12 mm
Number of rows: 1
Sealing (bearing): Sealed on both sides
Material (bearing seal): Rubber
Radial clearance: CN (Normal)
Material (bearing): Steel
Material (cage): Brass (sheet)
Bore type: Cylindrical
High temperature: No
Outer diameter: 72 mm
Matched arrangement: No
Tolerance class: Normal
Radial internal clearance: CN
Basic static load rating: 10.4
Material, bearing: Bearing steel
Relubrication feature: Without
Lubricant: Grease
Sealing type: Contact
Cage: Sheet metal
Locating feature, bearing outer ring: None
Filling slots: Without
Coating: Without
Sealing: Seal on both sides
Limiting speed: 5600
Bore diameter: 50
Basic dynamic load rating: 14.6
Outer diameter: 72

Brand SKF
01011364
EAN 7316577094568
Supplier number SKF 61910-2RS1

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this SKF ball bearing?: It features a 50 mm bore diameter, a 72 mm outer diameter, and a 12 mm width with a cylindrical bore.
What does the 2RS1 designation mean?: It indicates that the bearing has rubber contact seals on both sides to keep out dirt and moisture.
Does this bearing require greasing prior to installation?: No, it is pre-lubricated at the factory and ready to be mounted directly.
What radial internal clearance does the SKF 61910-2RS1 have?: This bearing features a standard radial internal clearance designated as CN.
Is this deep groove ball bearing suitable for high temperatures?: No, this standard variant is not designed for high-temperature applications.
