SKF

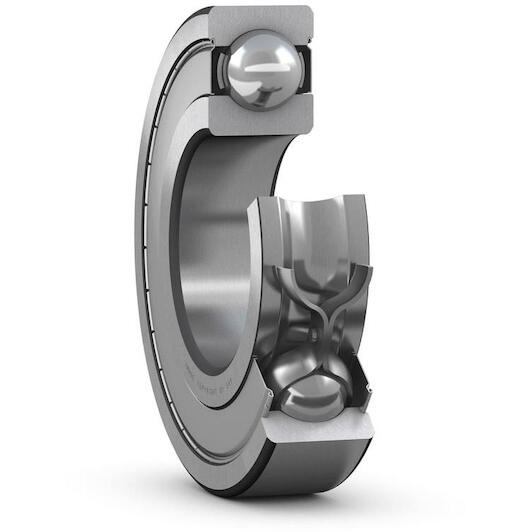

SKF 61801-2Z single-row groove ball bearing cylindrical 12x21x5 mm

Recommended Retail Price €36.13
17.80 tax incl.
€14.71 excl. VAT (incl. all environmental contributions)
On order: delivered from 21/05/2026
each

  • Delivery by DHL

Product description

Single row deep groove ball bearings with seals or shields are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types. The integral sealing can significantly prolong bearing service life because it keeps lubricant in the bearings and contaminants out.

  • Integral sealing prolongs bearing service life
  • Simple, versatile and robust design
  • Low friction and high-speed capability
  • Accommodate radial and axial loads in both directions
  • Require little maintenance
Key features according to our expert
  • Inner diameter: 12 mm
  • Width: 5 mm
  • Number of rows: 1
  • Seal (bearing): Double-sided sealed
  • Material (bearing seal): Metal
  • Radial clearance: CN (Normal)
  • Material (bearing): Steel
  • Material (cage): Brass (sheet)
  • Bore type: Cylindrical
  • High temperature: No
  • Outer diameter: 21 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316577611512
  • Supplier number: SKF 61801-2Z
Inner diameter
12 mm
Width
5 mm
Number of rows
1
Seal (bearing)
Double-sided sealed
Material (bearing seal)
Metal
Radial clearance
CN (Normal)
Material (bearing)
Steel
Material (cage)
Brass (sheet)
Bore type
Cylindrical
High temperature
No
Outer diameter
21 mm
Matched arrangement
No
Tolerance class
Normal
Radial internal clearance
CN
Basic static load rating
0.92
Material, bearing
Bearing steel
Relubrication feature
Without
Reference speed
70000
Lubricant
Grease
Sealing type
Non-contact
Cage
Sheet metal
Locating feature, bearing outer ring
None
Filling slots
Without
Coating
Without
Sealing
Shield on both sides
Limiting speed
36000
Bore diameter
12
Basic dynamic load rating
1.74
Outside diameter
21
