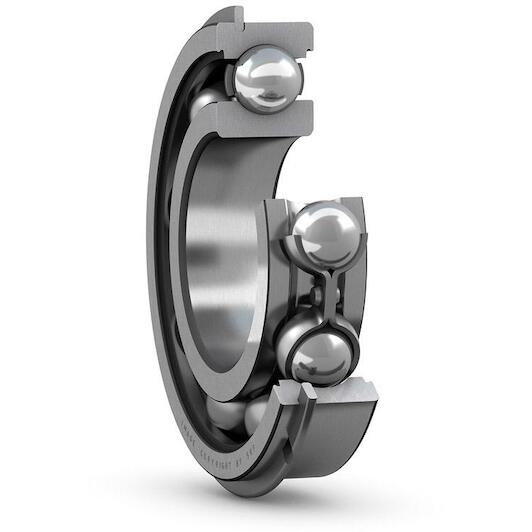

Product description: Deep groove ball bearings are particularly versatile They are simple in design, not removable, suitable for high to very high speeds and are very robust in operation, requiring little maintenance Deep raceways and close contact between raceways and balls make deep groove ball bearings suitable not only for radial loads, but also for axial loads in both directions, even at high speeds
Key features according to our expert
Inner diameter: 85 mm
Width: 22 mm
Number of rows: 1
Seal (bearing): Without seal
Material (bearing seal): Not applicable
Radial clearance: CN (Normal)
Material (bearing): Steel
Material (cage): Brass (sheet)
Bore type: Cylindrical
High temperature: No
Outer diameter: 130 mm
Specifications / All features
Brand:
SKF
01011224
EAN:
7316577302571
Supplier number:
SKF 6017 NR
Inner diameter
85 mm
Width
22 mm
Number of rows
1
Seal (bearing)
Without seal
Material (bearing seal)
Not applicable
Radial clearance
CN (Normal)
Material (bearing)
Steel
Material (cage)
Brass (sheet)
Bore type
Cylindrical
High temperature
No
Outer diameter
130 mm
Matched arrangement
No
Tolerance class
Normal
Radial internal clearance
CN
Basic static load rating
43 kN
Material, bearing
Bearing steel
Relubrication feature
Without
Reference speed
11,000 r/min
Skf performance class
SKF Explorer
Lubricant
None
Cage
Sheet metal
Locating feature, bearing outer ring
Snap ring (fitted)
Filling slots
Without
Coating
Without
Sealing
Without
Limiting speed
6,700 r/min
Bore diameter
85 mm
Basic dynamic load rating
52 kN
Outside diameter
130 mm
