What are the dimensions of this SKF ball bearing?

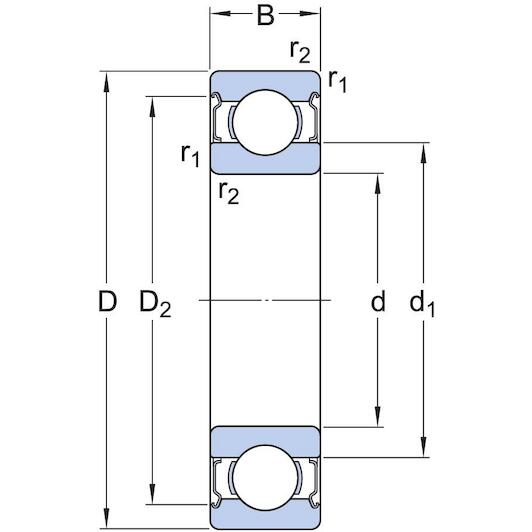

The bearing has an inside diameter of 80 mm, an outside diameter of 125 mm, and a width of 22 mm.

What does the 2Z designation mean?

It indicates that the bearing has metal dust shields fitted on both sides.

What internal clearance does this bearing have?

This bearing features standard radial internal clearance (class CN).

What types of loads can this deep groove ball bearing handle?

It accommodates radial loads and axial loads in both directions.

Does this bearing require lubrication before installation?

No, it is pre-lubricated with grease and ready for immediate mounting.

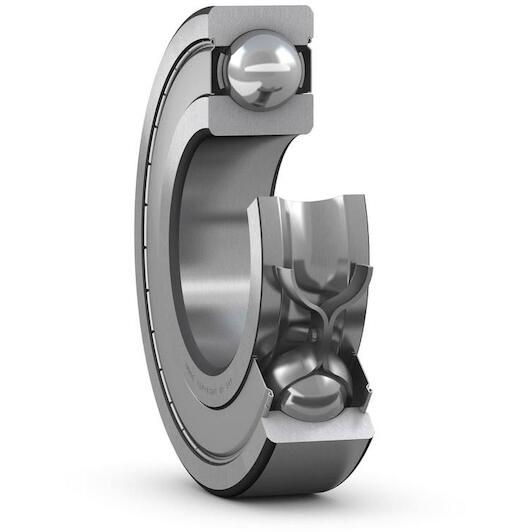

SKF 6016-2Z single-row groove ball bearing cylindrical 80x125x22 mm

Supplier number: SKF 6016-2Z | EAN 7316577086488

Recommended Retail Price €147.74

72.95 tax incl.

€60.29 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 6 products in stock.

Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Smooth rotation with Skf 6016-2Z

Practical benefits

Dual metal shield protection: Two metal shields retain internal grease while effectively keeping out dust and debris to extend operational life.
Optimized for high speeds: Low internal friction ensures you achieve quiet, vibration-free performance even during demanding high-speed continuous operations.
Handles radial and axial loads: Deep raceway grooves reliably accommodate both radial and axial forces acting in either rotational direction.

In a nutshell

The right choise for

With the Skf 6016-2Z, you achieve reliable, maintenance-free rotation for your industrial machinery. This single-row deep groove ball bearing features an 80 mm bore diameter, 125 mm outer diameter, and 22 mm width, equipped with metal shields on both sides. These shields retain the factory grease while keeping dust and contaminants out. Thanks to its low-friction design, the bearing operates smoothly at high rotational speeds and easily accommodates both radial and axial loads in either direction. It is the ideal choice for electric motors, drivetrains, and gearboxes requiring durable, continuous performance.

Product information FAQ

€72.95

In stock - tax incl.

Key features according to our expert

Inner diameter: 80 mm
Width: 22 mm
Number of rows: 1
Sealing (bearing): Sealed on both sides
Material (bearing seal): Metal
Radial clearance: CN (Normal)
Material (bearing): Steel
Material (cage): Brass (sheet)
Bore type: Cylindrical
High temperature: No
Outer diameter: 125 mm

Product description

Single row deep groove ball bearings with seals or shields are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types. The integral sealing can significantly prolong bearing service life because it keeps lubricant in the bearings and contaminants out.

Integral sealing prolongs bearing service life
Simple, versatile and robust design
Low friction and high-speed capability
Accommodate radial and axial loads in both directions
Require little maintenance

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 80 mm
Width: 22 mm
Number of rows: 1
Sealing (bearing): Sealed on both sides
Material (bearing seal): Metal
Radial clearance: CN (Normal)
Material (bearing): Steel
Material (cage): Brass (sheet)
Bore type: Cylindrical
High temperature: No
Outer diameter: 125 mm
Relubrication feature: Without
Radial internal clearance: CN
Basic static load rating: 40
Matched arrangement: No
Material, bearing: Bearing steel
Reference speed: 11000
Skf performance class: SKF Explorer
Lubricant: Grease
Sealing type: Non-contact
Cage: Sheet metal
Filling slots: Without
Tolerance class: Normal
Basic dynamic load rating: 49.4
Locating feature, bearing outer ring: None
Sealing: Shield on both sides
Limiting speed: 5600
Bore diameter: 80
Coating: Without
Outer diameter: 125

Brand SKF
01010156
EAN 7316577086488
Supplier number SKF 6016-2Z

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this SKF ball bearing?: The bearing has an inside diameter of 80 mm, an outside diameter of 125 mm, and a width of 22 mm.
What does the 2Z designation mean?: It indicates that the bearing has metal dust shields fitted on both sides.
What internal clearance does this bearing have?: This bearing features standard radial internal clearance (class CN).
What types of loads can this deep groove ball bearing handle?: It accommodates radial loads and axial loads in both directions.
Does this bearing require lubrication before installation?: No, it is pre-lubricated with grease and ready for immediate mounting.
