What are the dimensions of this SKF bearing?

This bearing has an inside diameter of 60 mm, an outside diameter of 95 mm, and a width of 18 mm.

What does the 2RS1 designation mean?

2RS1 indicates that the bearing has a contact rubber seal on both sides to protect against dirt and moisture.

What does the C3 clearance rating mean?

C3 denotes greater internal radial clearance than standard, accommodating thermal expansion at high operating speeds.

Does this bearing require lubrication before installation?

No, this double-sealed bearing is pre-lubricated with grease at the factory and is maintenance-free.

What bore type does the SKF 6012-2RS1/C3 have?

This bearing features a standard cylindrical bore designed for direct mounting on a 60 mm shaft.

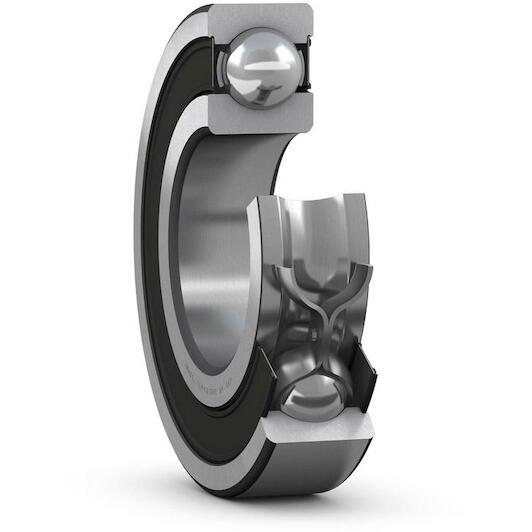

SKF 6012-2RS1/C3 single-row groove ball bearing cylindrical 60x95x18 mm

Supplier number: SKF 6012-2RS1/C3 | EAN 7316573400929

Recommended Retail Price €76.06

37.60 tax incl.

€31.07 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 2 products in stock.

Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Smooth rotation with Skf bearings

Practical benefits

Reliable double contact seals: Built with dual rubber seals, you keep lubricant inside and block dirt and moisture for longer service life.
Increased C3 internal clearance: You prevent binding during thermal expansion and high-speed operation thanks to the extra radial internal clearance.
Radial and axial support: You can easily accommodate combined radial and axial loads in both directions with very low friction.

In a nutshell

The right choise for

With the Skf 6012-2RS1/C3 deep groove ball bearing, you ensure smooth, low-friction rotation in electric motors, pumps, and industrial machinery. Dual rubber contact seals keep the factory grease securely inside while preventing dust, dirt, and moisture from entering, delivering maintenance-free operation. The increased C3 radial clearance effortlessly compensates for thermal expansion during higher operating temperatures and elevated speeds, preventing shaft binding. Sized at 60X95X18 mm with a cylindrical bore, this single-row steel bearing mounts directly onto a 60 mm shaft to reliably support both radial and axial loads in demanding operating conditions.

Product information FAQ

€37.60

In stock - tax incl.

Key features according to our expert

Inner diameter: 60 mm
Width: 18 mm
Number of rows: 1
Sealing (bearing): Sealed on both sides
Material (bearing seal): Rubber
Radial clearance: C3
Material (bearing): Steel
Material (cage): Brass (sheet)
Bore type: Cylindrical
High temperature: No
Outer diameter: 95 mm

Product description

Single row deep groove ball bearings with seals or shields are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types. The integral sealing can significantly prolong bearing service life because it keeps lubricant in the bearings and contaminants out.

Integral sealing prolongs bearing service life
Simple, versatile and robust design
Low friction and high-speed capability
Accommodate radial and axial loads in both directions
Require little maintenance

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 60 mm
Width: 18 mm
Number of rows: 1
Sealing (bearing): Sealed on both sides
Material (bearing seal): Rubber
Radial clearance: C3
Material (bearing): Steel
Material (cage): Brass (sheet)
Bore type: Cylindrical
High temperature: No
Outer diameter: 95 mm
Matched arrangement: No
Tolerance class: Class P6 (P6)
Radial internal clearance: C3
Basic static load rating: 23.2
Material, bearing: Bearing steel
Relubrication feature: Without
Skf performance class: SKF Explorer
Lubricant: Grease
Sealing type: Contact
Cage: Sheet metal
Locating feature, bearing outer ring: None
Filling slots: Without
Coating: Without
Sealing: Seal on both sides
Limiting speed: 4300
Bore diameter: 60
Basic dynamic load rating: 30.7
Outer diameter: 95

Brand SKF
01011213
EAN 7316573400929
Supplier number SKF 6012-2RS1/C3

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this SKF bearing?: This bearing has an inside diameter of 60 mm, an outside diameter of 95 mm, and a width of 18 mm.
What does the 2RS1 designation mean?: 2RS1 indicates that the bearing has a contact rubber seal on both sides to protect against dirt and moisture.
What does the C3 clearance rating mean?: C3 denotes greater internal radial clearance than standard, accommodating thermal expansion at high operating speeds.
Does this bearing require lubrication before installation?: No, this double-sealed bearing is pre-lubricated with grease at the factory and is maintenance-free.
What bore type does the SKF 6012-2RS1/C3 have?: This bearing features a standard cylindrical bore designed for direct mounting on a 60 mm shaft.
