What are the exact dimensions of this ball bearing?

The bearing has a 55 mm inside diameter, a 90 mm outside diameter, and a width of 18 mm.

What does the 2Z designation mean for this bearing?

The 2Z suffix indicates that the bearing is fitted with metal shields on both sides to keep out dust and debris.

What internal clearance does the SKF 6011-2Z have?

This model features standard radial internal clearance (designated as CN).

Does this deep groove ball bearing require lubrication before assembly?

No, it comes pre-lubricated from the factory and is ready for immediate installation.

What type of bore does this SKF bearing have?

This bearing features a standard cylindrical bore with a diameter of 55 mm.

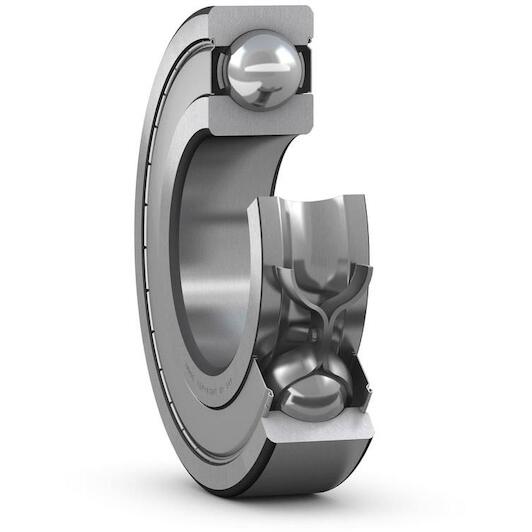

SKF 6011-2Z single-row groove ball bearing cylindrical 55x90x18 mm

Supplier number: SKF 6011-2Z | EAN 7316571066165

Recommended Retail Price €58.77

28.95 tax incl.

€23.92 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 4 products in stock.

Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Smooth rotation with Skf ball bearings

Practical benefits

Effective protection against debris: Thanks to the dual metal shields, you keep grease inside while keeping contaminants out to extend bearing life.
Handles versatile load directions: You easily support both radial and axial loads in either direction with the durable steel deep groove design.
Reduced maintenance in operation: Low friction performance allows you to run applications smoothly at high speeds with minimal servicing required.

In a nutshell

The right choise for

With the Skf 6011-2Z single row deep groove ball bearing, you ensure smooth and reliable rotation across your machinery and rotating assemblies. Thanks to its durable steel construction, you easily accommodate both radial and axial loads in either direction. The dual metal shields keep dust and contaminants out while retaining the factory lubricant inside to extend bearing service life. Featuring a 55 mm bore, a 90 mm outside diameter, and an 18 mm width, this cylindrical bearing with cn clearance is ready for immediate mounting on electric motors, pumps, gearboxes, and conveyor rollers.

Product information FAQ

€28.95

In stock - tax incl.

Key features according to our expert

Inner diameter: 55 mm
Width: 18 mm
Number of rows: 1
Sealing (bearing): Sealed on both sides
Material (bearing seal): Metal
Radial clearance: CN (Normal)
Material (bearing): Steel
Material (cage): Brass (sheet)
Bore type: Cylindrical
High temperature: No
Outer diameter: 90 mm

Product description

Single row deep groove ball bearings with seals or shields are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types. The integral sealing can significantly prolong bearing service life because it keeps lubricant in the bearings and contaminants out.

Integral sealing prolongs bearing service life
Simple, versatile and robust design
Low friction and high-speed capability
Accommodate radial and axial loads in both directions
Require little maintenance

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 55 mm
Width: 18 mm
Number of rows: 1
Sealing (bearing): Sealed on both sides
Material (bearing seal): Metal
Radial clearance: CN (Normal)
Material (bearing): Steel
Material (cage): Brass (sheet)
Bore type: Cylindrical
High temperature: No
Outer diameter: 90 mm
Relubrication feature: Without
Radial internal clearance: CN
Basic static load rating: 21.2
Matched arrangement: No
Material, bearing: Bearing steel
Reference speed: 16000
Skf performance class: SKF Explorer
Lubricant: Grease
Sealing type: Non-contact
Cage: Sheet metal
Filling slots: Without
Tolerance class: Class P6 (P6)
Basic dynamic load rating: 29.6
Locating feature, bearing outer ring: None
Sealing: Shield on both sides
Limiting speed: 8000
Bore diameter: 55
Coating: Without
Outer diameter: 90

Brand SKF
01010133
EAN 7316571066165
Supplier number SKF 6011-2Z

Frequently asked questions about this product

Answered by specialists

What are the exact dimensions of this ball bearing?: The bearing has a 55 mm inside diameter, a 90 mm outside diameter, and a width of 18 mm.
What does the 2Z designation mean for this bearing?: The 2Z suffix indicates that the bearing is fitted with metal shields on both sides to keep out dust and debris.
What internal clearance does the SKF 6011-2Z have?: This model features standard radial internal clearance (designated as CN).
Does this deep groove ball bearing require lubrication before assembly?: No, it comes pre-lubricated from the factory and is ready for immediate installation.
What type of bore does this SKF bearing have?: This bearing features a standard cylindrical bore with a diameter of 55 mm.
