What are the dimensions of this SKF deep groove ball bearing?

The bearing has a 50 mm bore diameter, an 80 mm outside diameter, and a width of 16 mm.

What does the 2Z designation mean on this bearing?

The 2Z suffix means the bearing is equipped with a metal shield on both sides to protect against dust and debris.

What does the C3 internal clearance indicate for 6010-2Z/C3?

C3 indicates a larger radial internal clearance than standard, suitable for higher speeds and thermal expansion.

Does this ball bearing require greasing before installation?

No, this bearing comes pre-lubricated with grease from the factory and is maintenance-free for life.

Which load types can this bearing accommodate?

This single-row deep groove ball bearing accommodates both radial and axial loads in both directions.

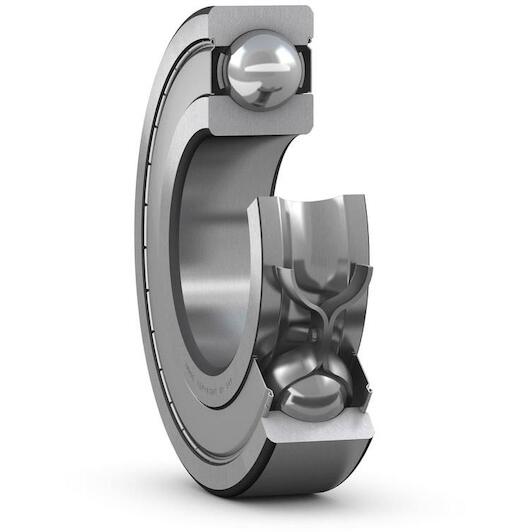

SKF 6010-2Z/C3 single-row groove ball bearing cylindrical 50x80x16 mm

Supplier number: SKF 6010-2Z/C3 | EAN 7316576618024

Recommended Retail Price €46.00

22.60 tax incl.

€18.68 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 7 products in stock.

Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Smooth rotation with Skf

Practical benefits

Double metal shields: The dual steel shields retain internal lubrication effectively while preventing dust and debris from reaching critical rolling surfaces.
Increased C3 clearance: With C3 radial internal clearance, you allow safe thermal expansion during continuous operation at higher temperatures and speeds.
Versatile load capacity: This single-row deep groove ball bearing accommodates both radial and axial loads with minimal friction and noise.

In a nutshell

The right choise for

With the Skf 6010-2Z/C3 single-row deep groove ball bearing, you ensure smooth, dependable rotation in electric motors, pumps, and industrial transmissions. Designed with a 50 mm bore, 80 mm outside diameter, and 16 mm width, this steel bearing reliably accommodates radial and axial loads in both directions. The increased C3 internal clearance allows safe thermal expansion during continuous operation at higher speeds and temperatures. Featuring dual 2Z metal shields, it retains internal factory grease while keeping out dust and solid contaminants, giving you a maintenance-free solution with minimal friction, noise, and vibration.

Product information FAQ

€22.60

In stock - tax incl.

Key features according to our expert

Inner diameter: 50 mm
Width: 16 mm
Number of rows: 1
Sealing (bearing): Sealed on both sides
Material (bearing seal): Metal
Radial clearance: C3
Material (bearing): Steel
Material (cage): Brass (sheet)
Bore type: Cylindrical
High temperature: No
Outer diameter: 80 mm

Product description

Single row deep groove ball bearings with seals or shields are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types. The integral sealing can significantly prolong bearing service life because it keeps lubricant in the bearings and contaminants out.

Integral sealing prolongs bearing service life
Simple, versatile and robust design
Low friction and high-speed capability
Accommodate radial and axial loads in both directions
Require little maintenance

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 50 mm
Width: 16 mm
Number of rows: 1
Sealing (bearing): Sealed on both sides
Material (bearing seal): Metal
Radial clearance: C3
Material (bearing): Steel
Material (cage): Brass (sheet)
Bore type: Cylindrical
High temperature: No
Outer diameter: 80 mm
Relubrication feature: Without
Radial internal clearance: C3
Basic static load rating: 15.6
Matched arrangement: No
Material, bearing: Bearing steel
Reference speed: 18000
Skf performance class: SKF Explorer
Lubricant: Grease
Sealing type: Non-contact
Cage: Sheet metal
Filling slots: Without
Tolerance class: Class P6 (P6)
Basic dynamic load rating: 22.9
Locating feature, bearing outer ring: None
Sealing: Shield on both sides
Limiting speed: 9000
Bore diameter: 50
Coating: Without
Outer diameter: 80

Brand SKF
01010935
EAN 7316576618024
Supplier number SKF 6010-2Z/C3

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this SKF deep groove ball bearing?: The bearing has a 50 mm bore diameter, an 80 mm outside diameter, and a width of 16 mm.
What does the 2Z designation mean on this bearing?: The 2Z suffix means the bearing is equipped with a metal shield on both sides to protect against dust and debris.
What does the C3 internal clearance indicate for 6010-2Z/C3?: C3 indicates a larger radial internal clearance than standard, suitable for higher speeds and thermal expansion.
Does this ball bearing require greasing before installation?: No, this bearing comes pre-lubricated with grease from the factory and is maintenance-free for life.
Which load types can this bearing accommodate?: This single-row deep groove ball bearing accommodates both radial and axial loads in both directions.
