skf_6005_2zc3gjn
SKF

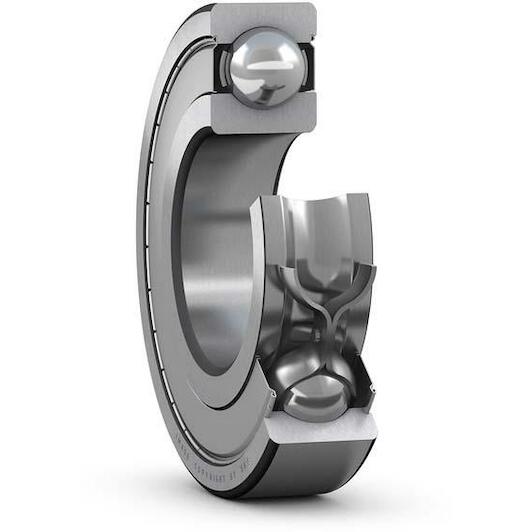

SKF 6005-2Z/C3GJN single-row groove ball bearing cylindrical 25x47x12 mm

Recommended Retail Price €18.17
8.95 tax incl.
€7.40 excl. VAT (incl. all environmental contributions)
On order: delivered from 26/05/2026
each

  • Delivery by DHL

Product description

Single row deep groove ball bearings with seals or shields are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types. The integral sealing can significantly prolong bearing service life because it keeps lubricant in the bearings and contaminants out.

  • Integral sealing prolongs bearing service life
  • Simple, versatile and robust design
  • Low friction and high-speed capability
  • Accommodate radial and axial loads in both directions
  • Require little maintenance
Key features according to our expert
  • Inner diameter: 25 mm
  • Width: 12 mm
  • Number of rows: 1
  • Seal (bearing): Double-sided sealed
  • Material (bearing seal): Metal
  • Radial clearance: C3
  • Material (bearing): Steel
  • Material (cage): Brass (sheet)
  • Bore type: Cylindrical
  • High temperature: No
  • Outer diameter: 47 mm
Specifications / All features
  • Brand: SKF
  • EAN: 07316571531298
  • Supplier number: SKF 6005-2Z/C3GJN
Inner diameter
25 mm
Width
12 mm
Number of rows
1
Seal (bearing)
Double-sided sealed
Material (bearing seal)
Metal
Radial clearance
C3
Material (bearing)
Steel
Material (cage)
Brass (sheet)
Bore type
Cylindrical
High temperature
No
Outer diameter
47 mm
Relubrication feature
Without
Radial internal clearance
C3
Basic static load rating
6.55
Matched arrangement
No
Material, bearing
Bearing steel
Reference speed
32000
Skf performance class
SKF Explorer
Lubricant
Grease
Sealing type
Non-contact
Cage
Sheet metal
Filling slots
Without
Tolerance class
Class P6 (P6)
Basic dynamic load rating
11.9
Locating feature, bearing outer ring
None
Sealing
Shield on both sides
Limiting speed
16000
Bore diameter
25
Coating
Without
Outside diameter
47
